What are the different types of Laser Module?

Selecting the correct optical component is rarely about finding the absolute brightest beam available. Instead, it involves matching precise wavelengths, power outputs, and beam profiles to strict application standards. We know incorrect integration often leads to rapid thermal failure. It can shorten operational lifespans significantly. You might experience poor target contrast in field applications. Worse, you could fail to meet critical FDA or IEC safety compliance regulations. These failures create unnecessary project delays and safety hazards.

Every engineering team faces unique environmental constraints. Understanding these parameters ensures your final product operates flawlessly. We designed this guide to give you a clear technical evaluation framework. You will learn how to accurately compare various optical solutions. We will examine wavelength differences, environmental suitability, and physical integration criteria. You can use these actionable insights to build safer, more reliable optical systems.

Key Takeaways

• Wavelength dictates application: Visible modules (Red, Green, Blue) serve alignment, scanning, and material processing, while invisible (Infrared) modules dominate sensing and communications.

• Visibility vs. Efficiency: A Green Laser Module offers superior human-eye visibility in bright environments but requires stricter thermal management than a Red Laser Module.

• Power and Material Interaction: A Blue Laser Module is highly absorptive in organic materials and certain metals, making it the standard for compact engraving.

• Integration goes beyond the diode: A successful deployment requires evaluating the driver circuit, heat sink, optics, and compliance certifications (IEC 60825-1).

Defining Success Criteria for Laser Module Selection

Moving beyond baseline specifications matters greatly. We must define what makes integration successful for OEMs. End-users expect consistent performance across varying conditions. A successful deployment relies on strict operational alignment. You cannot base your design solely on peak power output. Practical application determines the true value of your chosen component.

Evaluating operating environment constraints is your next crucial step. Ambient light interference easily washes out weak beams. Direct sunlight renders standard interior optics completely invisible. Temperature fluctuations shift wavelengths and degrade optical stability rapidly. Physical space limitations demand highly compact form factors. You must design housing solutions carefully to address these specific environmental challenges.

Target interaction determines your underlying technology choice entirely. Sometimes, you need a beam highly visible to the human eye. This applies heavily to manual alignment and positioning tools. Other times, a specialized sensor must read the light accurately. Think of complex machine vision or modern LiDAR systems. Alternatively, you might need to alter a material physically. High-energy cutting and engraving applications require entirely different optical profiles.

Balancing operational longevity requires strategic planning from day one. Upfront diode selection impacts lifecycle endurance directly. You must build adequate thermal management infrastructure around the unit. Proper heat dissipation prevents premature component degradation. Passive cooling works for intermittent usage. Continuous operations demand robust active cooling systems.

Best Practices for Operational Success

• Define your maximum ambient operating temperature before reviewing specifications.

• Calculate the exact distance between the lens and your physical target.

• Determine if your end-user will wear protective eyewear during operation.

• Allocate sufficient physical space for aluminum or brass heat sinks.

Visible Wavelengths: Evaluating Red, Green, and Blue Laser Modules

Red Laser Module (635nm – 650nm): The Industry Standard

Red variants offer exceptional reliability across numerous applications. They consume very little power during continuous operation. Manufacturing these units remains highly streamlined and consistent. They maintain stability across a remarkably broad operating temperature range. This robust nature makes them a favorite among industrial designers.

They work best for everyday commercial equipment. Warehouse barcode scanners rely heavily on them. Standard construction levelers use them constantly for interior framing. You will find them integrated into countless consumer electronics. Their straightforward drive electronics simplify the entire manufacturing process.

However, they do have distinct physical limitations. They suffer from poor visibility in bright daylight. You will struggle to see them over long outdoor distances. The human eye simply lacks high sensitivity to red wavelengths under intense ambient lighting. If your application targets outdoor construction, you must look elsewhere.

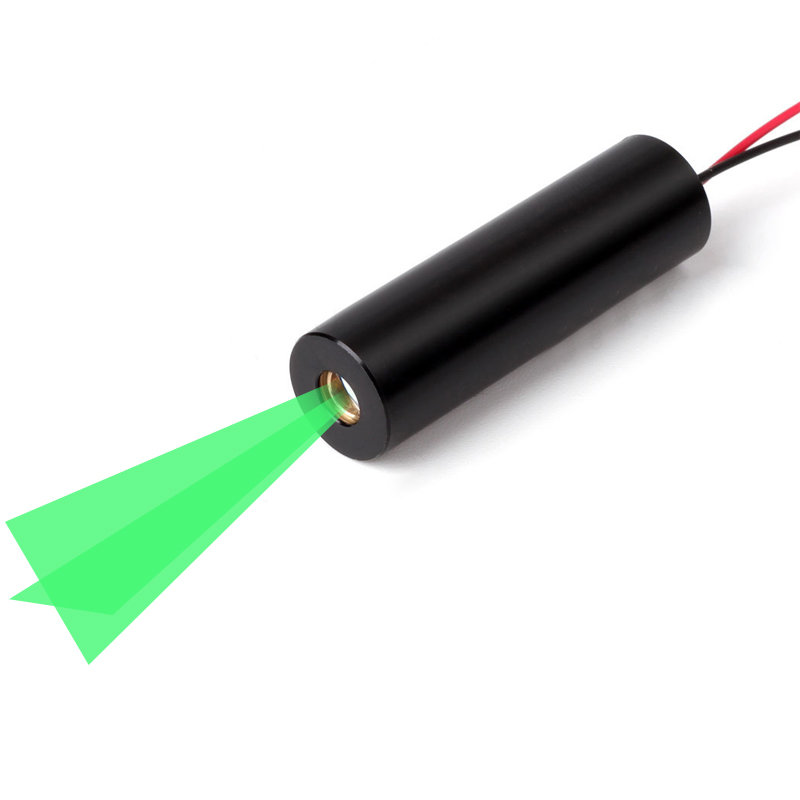

Green Laser Module (515nm – 532nm): High Visibility Applications

Green beams stand out brilliantly in challenging lighting environments. The human eye perceives them as up to four times brighter than red alternatives. This holds true even at the exact same output power level. They provide optimal outdoor visibility for demanding surveying tasks.

We see them excel in outdoor construction alignment. Medical positioning devices depend on their crisp contrast against human tissue. Long-range targeting systems utilize them for absolute pinpoint accuracy. High-end machine vision setups also benefit from their clarity on dark surfaces.

These units do introduce complex integration challenges. They consume noticeably higher electrical power during operation. They require much tighter thermal constraints to function properly. Older Diode-Pumped Solid State (DPSS) models are highly temperature-sensitive. Direct emission green diodes perform much better in harsh environments. They resist temperature shifts effectively but require larger resource allocations during procurement.

Blue Laser Module (405nm – 450nm): High-Energy Processing

Blue diodes deliver intense energy for specialized manufacturing tasks. They boast a very high absorption rate in organic materials. Wood, leather, and non-ferrous metals absorb this wavelength rapidly. This specific characteristic allows engineers to achieve incredibly precise focusing. It makes them highly effective for localized heating.

They serve as the backbone for desktop engravers. 3D printing systems, specifically SLA resin setups, rely on them. Medical diagnostics use them frequently for fluorescence excitation. They alter materials quickly and accurately without massive power requirements.

You must respect their extreme eye-safety risks constantly. Class 3B and Class 4 safety classifications are extremely common here. You absolutely must design robust protective enclosures for them. Strict interlock systems are non-negotiable to prevent accidental operator exposure.

Invisible Solutions: The Infrared Laser Module

Infrared Laser Module (780nm – 1550nm): The Stealth Performer

Infrared beams remain completely invisible to the human eye. They easily penetrate specific opaque materials like silicon. They support massive high-speed data transmission networks globally. Certain infrared wavelengths, particularly 1550nm, are inherently eye-safe under normal operating conditions. The fluid in the human eye absorbs them before they reach the retina.

They dominate the autonomous vehicle landscape through modern LiDAR. Optical fiber communications depend on them entirely for signal relay. Night vision illumination requires these specific invisible wavelengths to function covertly. Biometric recognition systems and non-destructive testing platforms also utilize them heavily.

You must match them precisely during system evaluation. Their output must align exactly with the spectral sensitivity of receiving sensors. A mismatched camera will simply fail to detect the invisible beam. This precise calibration dictates overall system success or failure.

Implementation introduces significant operator safety risks. Assembly technicians cannot see stray reflections during manufacturing. This invisibility makes manufacturing protocols incredibly critical. You must implement advanced sensor-based safety barriers. Always provide specific infrared-blocking eyewear for your assembly teams.

Key Evaluation Dimensions: Beyond the Diode

Choosing between dot, line, or crosshair projections changes everything. Your application strictly dictates the necessary optical profile. You must assess beam divergence carefully for long-distance tasks. We measure this specific divergence in milliradians. Lower milliradian values indicate a tighter, more focused beam over distance. Glass lenses offer superior heat resistance. Acrylic lenses provide adequate performance for low-power consumer devices.

Drive electronics determine operational consistency over time. You must choose between two primary control methodologies. Automatic Power Control (APC) maintains constant output power regardless of temperature fluctuations. This stability proves vital for precision measurement tools. Conversely, Automatic Current Control (ACC) maintains a constant electrical current. Engineers often prefer ACC for high-power cutting scenarios. External cooling systems handle the resulting thermal drift effectively in ACC setups.

Thermal management strategies require deep engineering consideration. Assessing casing materials like brass versus aluminum is fundamental. Aluminum dissipates heat much faster into the surrounding air. Brass offers superior machining tolerances for precise alignment. You must evaluate the absolute necessity of active cooling. Thermo-Electric Cooling (TEC) becomes mandatory for high-duty-cycle operations. Relying on passive cooling for a 24/7 industrial system usually guarantees premature failure.

Regulatory compliance protects your business and your end-users. You must navigate IEC 60825-1 standards carefully during design. FDA CDRH classifications dictate product legality in American markets. You must ensure your selected supplier provides comprehensive testing documentation. Global distribution requires strict adherence to these established safety frameworks. Never bypass optical safety classifications to speed up a product launch.

Drive Electronics Comparison Matrix

Common Mistakes in Component Evaluation

• Ignoring the operating temperature limits of the specific diode.

• Failing to account for lens degradation over thousands of hours.

• Assuming all safety classifications allow for identical housing designs.

• Underestimating the heat generation of continuous-wave operations.

Shortlisting Logic and Implementation Risks

Supply chain reliability dictates your long-term production viability. You must evaluate manufacturers based on strict lot-to-lot consistency. Request testing data transparency upfront before signing any purchasing contracts. Review warranty terms to understand their failure replacement policies clearly. Reliable partners share their quality assurance metrics willingly. They will provide detailed aging test reports for their components.

Prototyping phasing prevents catastrophic field failures down the line. OEMs should test multiple module variations vigorously. You cannot rely solely on the provided datasheet. Real-world conditions often reveal hidden performance bottlenecks. We highly recommend a structured approach to prototyping and validation.

1. Define extreme edge-case environmental conditions for your specific application.

2. Subject sample units to extreme heat and cold in a thermal chamber.

3. Measure optical drift and power degradation during thermal cycling.

4. Verify final beam divergence at your maximum intended operating distance.

5. Finalize exact component specifications before initiating bulk purchasing.

Designing safety interlocks requires careful mechanical integration. The end-product must house the diode securely against vibration. This becomes especially critical when utilizing Class 3R lasers. Class 3B or 4 lasers demand fail-safe physical shutoff mechanisms. You cannot compromise on physical enclosure integrity. Adding mechanical shutters provides an extra layer of operational safety.

Defining your next procurement steps accelerates product development. You must outline the internal spec sheet clearly. Document the exact wavelength and the required output power. Specify the operating voltage and beam size at your precise working distance. Note the required duty cycle for your system. You can then request accurate RFQs from qualified suppliers. Clear documentation prevents costly procurement misunderstandings.

Conclusion

The ideal optical component aligns perfectly with your specific demands. Environmental, safety, and operational requirements dictate this selection completely. You must balance physical form factors against required thermal management systems.

Red modules provide excellent manufacturing efficiency and everyday utility. Green options deliver unparalleled visibility in extremely bright environments. Blue and Infrared components unlock highly specialized processing and sensing capabilities. Each wavelength serves a distinct industrial purpose.

Take direct action by defining your exact operational parameters today. Advise your engineering and procurement teams to collaborate closely on thermal constraints. Consult directly with experienced optical integrators to refine your mechanical requirements. Request specific sample units for rigorous bench-testing against your defined success criteria.

FAQ

Q: What is the difference between a laser diode and a laser module?

A: A laser diode is the bare semiconductor component that generates light. A laser module is a complete sub-assembly. It includes the diode, driver electronics, protective housing, and focusing optics. Engineers use complete modules for faster, safer product integration.

Q: Are Direct Emission Green Lasers better than DPSS Green Lasers?

A: Direct emission green diodes offer much better temperature stability. They provide higher efficiency compared to older Diode-Pumped Solid State (DPSS) models. This stability makes direct emission units preferable for harsh, fluctuating environments.

Q: How do I choose between Continuous Wave (CW) and Pulsed operation?

A: CW provides a steady beam ideal for alignment and continuous cutting. Pulsed operation delivers high peak power in very short bursts. This pulsing is critical for LiDAR, precision sensing, and minimizing thermal damage in sensitive materials.

Q: Does a higher milliwatt (mW) rating always mean better performance?

A: No. Higher power increases visibility or cutting speed, but it also increases heat generation. It raises power consumption and regulatory burdens, requiring stricter safety classifications. Optical quality and beam shape often matter far more than raw power.
