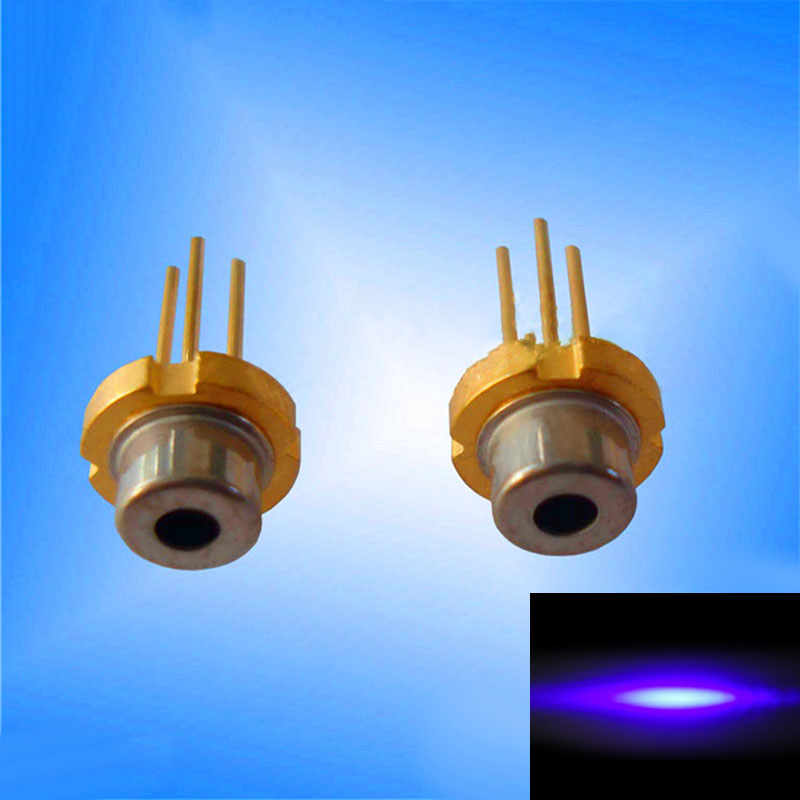

Laser Diode

395nm, 405nm, 450nm, 488nm laser diodes

Our blue-violet laser diode series covers wavelengths from 405 nm to 488 nm, delivering output powers from milliwatts to several watts. Available in compact Ø5.6 mm and high-power Ø9 mm packages, these diodes offer both single-mode and multi-mode options to suit applications such as 3D printing, fluorescence excitation, material processing, and scientific instrumentation. Designed for stable performance across a wide temperature range, they provide reliable, high-visibility blue and violet output for demanding industrial and research environments.

Product Code
Diameter (mm)Wavelength (nm)Output Power (mW)Operating Temp (℃)Model
D57-405150A0Ø5.6405150-10~75℃Single-mode
D53-4051W3K0Ø5.640513000~30℃Single-mode
D56-45050K0Ø5.645050-10~60℃Single-mode
D56-45080K1Ø5.645080-10~70℃Single-mode
D55-4501WK0Ø5.64501000-10~50℃Multi-mode
D58-4502WK0
Ø5.64502000-20~85℃Multi-mode
D98-4503WK0Ø94503000-20~85℃Multi-mode
D97-4505W5K0
Ø945055000~70℃Multi-mode
D56-48855K0Ø5.648850-10~60℃Single-mode


Note:

※Get a quote for standard products or a tailored solution. Reach out to our engineering team for:

Free technical consultation Volume production support Customized design

※We guarantee a response with a quote within 48 hours.
