Green Laser Diode

Product Overview

• As a premier manufacturer and supplier of advanced optical components, we present this high-performance Green Laser Diode designed for demanding procurement requirements.

• Engineered for precision and longevity, this diode serves as the core illumination source for sophisticated industrial and medical systems.

• Wavelength range spans from 515nm to 532nm, offering exceptional visibility.

• Output power is highly scalable, ranging from 1mW up to a formidable 3.5W.

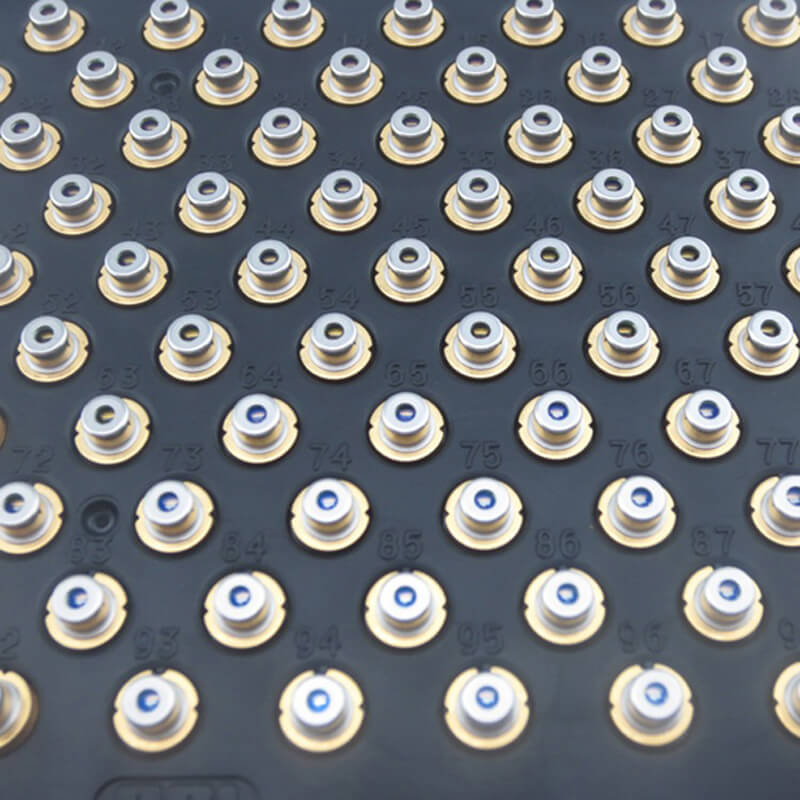

• Housed in a standardized 9mm TO-Can package, ensuring seamless integration into existing equipment architectures.

• Delivers an exceptional expected lifetime exceeding 10,000 hours of continuous operation.

Product Description

The Green Laser Diode represents a pinnacle of optical engineering, delivering an intensely visible, crisp green beam that cuts through high-ambient light environments with absolute clarity. When integrated into your sophisticated equipment, the visual feedback is immediate—a sharp, perfectly defined spectral output that enhances the accuracy of alignment tools and biomedical instruments alike. Crafted with meticulous attention to detail, the robust anodized metal and brass housing feels substantial, providing a secure, vibration-resistant foundation for the delicate semiconductor within. This solid construction ensures that the diode operates silently and efficiently, dissipating heat rapidly to maintain a stable, continuous wave of light.

By incorporating this precision-engineered component into your production lines or medical devices, you eliminate the persistent issues of beam degradation and thermal drift. The result is a seamless operational experience, where the brilliant green emission remains consistent hour after hour. This empowers your systems to perform flawless 3D scanning, precise surgical targeting, and rigorous industrial inspections without the costly interruptions of component failure. The tactile quality of the heavy-duty pins and the flawless finish of the optical window reflect a manufacturing standard dedicated to absolute reliability and superior optical performance.

Product Specifications

Key Features & Highlights

Elevate your system's capabilities with a laser diode engineered to surpass standard industry expectations. This component is meticulously designed to optimize your assembly process while dramatically enhancing the end-user experience through superior optical clarity and rugged dependability.

• Exceptional Visibility: The human eye is highly sensitive to the 520nm-532nm spectrum, meaning this green emission appears significantly brighter than red alternatives, reducing eye strain during precise alignment tasks.

• Versatile Output Configurations: Whether your project requires a concentrated dot for targeting, a sharp line for scanning, or a precise crosshair for positioning, the adaptable beam output meets exact spatial requirements.

• Seamless TTL Modulation: Achieve precise control over the laser's emission with rapid TTL modulation, allowing for flawless synchronization in complex machine vision and diagnostic equipment.

• Compact Footprint: The standardized 9mm TO-Can packaging ensures that even the most power-dense 3.5W models can be integrated into space-constrained handheld devices or compact industrial sensors.

• Unwavering Reliability: Built to operate continuously in demanding environments, the diode drastically reduces maintenance schedules and replacement costs, directly improving your operational efficiency.

Performance & Stability

When procuring critical optical components, consistent output and long-term stability are non-negotiable. This green laser diode is engineered to deliver unwavering performance, ensuring your high-intensity industrial and medical equipment operates flawlessly under rigorous daily use without unexpected power drops.

• Broad Power Spectrum: Select from a highly adaptable power range starting at a delicate 1mW for sensitive biomedical analysis, scaling up to a formidable 3.5W for heavy-duty industrial processing.

• Ultra-Low Noise Operation: Designed to minimize optical noise and power fluctuations, providing the clean, stable continuous wave (CW) required for high-resolution imaging and scanning.

• Instantaneous Activation: Features rapid startup capabilities without the frustrating warm-up delays typical of older technologies, instantly streamlining your operational workflow.

• Sustained Power Integrity: Advanced semiconductor architecture prevents power degradation over extended operational cycles, guaranteeing that your equipment performs with the exact same intensity on day one as it does on day one thousand.

Wavelength & Beam Quality

The precision of your alignment tools and machine vision systems relies entirely on the quality of the light source. By utilizing this diode, you integrate a spectrum of light that offers unparalleled brightness and structural perfection, cutting through the most challenging ambient lighting conditions to deliver exact optical data.

• Pinpoint Spectral Accuracy: Emitting exactly at the 520nm, 525nm, or 532nm wavelengths, the diode provides the high-contrast illumination essential for critical sorting and inspection machinery.

• Pristine Beam Morphology: Available in both single-mode for ultra-fine, diffraction-limited spots, and multimode for high-power area illumination, ensuring the beam profile perfectly matches your specific optical requirements.

• High-Visibility Projection: The distinct green spectrum guarantees maximum visibility in outdoor construction environments or brightly lit operating rooms, eliminating the guesswork from precision targeting.

• Customizable Generators: Equip your modules with specialized optics to project razor-sharp lines or exact crosshairs, instantly upgrading the spatial accuracy of your 3D profiling systems.

Integration & Compatibility

Reducing secondary development time is crucial for equipment manufacturers and system integrators. This diode is crafted with standardized dimensions and versatile coupling options, ensuring it drops seamlessly into your existing architectural frameworks with minimal engineering friction, thereby accelerating your time to market.

• Standardized TO-5 Packaging: The universally recognized 9mm TO-Can format allows for immediate, hassle-free mounting into standard laser housings and heat sinks.

• Flexible Delivery Systems: Choose between fiber-coupled configurations for flexible light routing in confined medical devices, or free-space output for direct, unhindered projection in open environments.

• Simplified Modulation Interface: Integrated TTL modulation support allows your control systems to pulse the laser with microsecond precision, effortlessly syncing with high-speed camera shutters.

• Streamlined Assembly: The robust, predictable geometry of the diode pins ensures rapid, error-free soldering and connection during your mass production processes, significantly lowering assembly costs.

Durability & Protection

Industrial environments are unforgiving, exposing delicate electronics to static shocks, vibrations, and power anomalies. This laser diode is fortified with comprehensive internal and external protection mechanisms, safeguarding your investment and virtually eliminating premature component failure in the field.

• Integrated Zener Diode: Built-in electrostatic discharge (ESD) and reverse voltage protection shield the sensitive semiconductor core from catastrophic electrical spikes during installation and operation.

• Surge Resilience: Engineered to absorb and dissipate sudden power surges, ensuring the diode remains fully functional even in facilities with unstable electrical grids.

• Ruggedized Housing: Encased in premium anodized metal or solid brass, the module variants are highly resistant to physical impacts, vibrations, and corrosive industrial atmospheres.

• Extended Operational Lifespan: With a meticulously calculated expected lifetime exceeding 10,000 hours, this component drastically reduces the frequency of field replacements, enhancing the perceived reliability of your finished products.

Thermal Management & Environment Adaptability

Temperature fluctuations are the primary enemy of laser longevity and wavelength stability. This component is designed with advanced thermal dynamics, allowing it to thrive in diverse environmental conditions while maintaining absolute optical integrity and preventing heat-induced degradation.

• Wide Operating Temperature Range: Capable of flawless operation from a freezing 0°C up to a sweltering +50°C, making it ideal for both unheated warehouses and densely packed, heat-generating electronic enclosures.

• Low Thermal Resistance: The specialized base materials rapidly draw heat away from the active region, preventing thermal bottlenecking and protecting the diode from thermal runaway.

• Wavelength Stability: Superior heat dissipation ensures the emission wavelength remains tightly locked, preventing the spectral drift that can compromise the accuracy of sensitive analytical instruments.

• Consistent Output in Harsh Conditions: Whether deployed in high-altitude surveying equipment or enclosed factory automation sensors, the diode maintains a steady, reliable beam output.

Application Versatility

A truly superior optical component must adapt to the unique demands of diverse professional fields. This green laser diode is the versatile engine driving innovation across multiple high-tech industries, providing the exact illumination characteristics required for highly specialized and demanding applications.

• Medical & Biomedical: Perfect for integration into advanced endoscopes, flow cytometers, and laser therapy devices, where precise wavelength and tissue interaction are critical for diagnostic accuracy.

• Industrial Machine Vision: The high-contrast green light significantly enhances the resolution of 3D scanners and automated quality inspection cameras, allowing for the detection of microscopic surface defects.

• Precision Alignment: Indispensable for sawmills, textile manufacturing, and heavy construction, where highly visible projected lines dictate the accuracy of cutting and assembly processes.

• Outdoor Displays & Surveying: The intense brightness of the green spectrum ensures that leveling tools and large-scale projection systems remain clearly visible even under direct sunlight.

Why Choose Us

Selecting the right supplier for your critical optical components is a strategic decision that impacts your entire production cycle. We provide more than just premium hardware; we deliver a comprehensive partnership focused on scaling your operations, ensuring consistent quality, and securing your supply chain.

• Uncompromising Quality Control: Every single diode undergoes rigorous optoelectronic testing and aging processes before leaving our facility, ensuring you receive only top-tier, defect-free components.

• Scalable Production Capacity: Our advanced manufacturing infrastructure is designed to fulfill massive volume orders with rapid turnaround times, keeping your assembly lines moving without delay.

• Deep Customization Capabilities: We understand that off-the-shelf solutions do not always fit. Our engineering team collaborates directly with yours to tailor power outputs, packaging, and beam profiles to your exact specifications.

• Dedicated Technical Support: Gain direct access to our experienced photonics engineers who provide comprehensive guidance on thermal management, electrical integration, and optical focusing.

• Global Logistics Expertise: We utilize robust, shock-proof packaging and partner with top-tier logistics networks to ensure your sensitive components arrive safely and on schedule, anywhere in the world.

Frequently Asked Questions

How does the integrated Zener diode protect the laser during integration?

The built-in Zener diode acts as a critical fail-safe against electrostatic discharge (ESD) and reverse polarity. During the assembly process, static electricity from handling can easily destroy standard laser chips. This integrated protection safely shunts excess voltage away from the delicate semiconductor, drastically increasing your manufacturing yield rates and preventing costly losses during production.

Can the 9mm TO-Can package be effectively cooled without active thermoelectric coolers (TEC)?

Yes, for lower power variants, passive cooling through a properly machined aluminum or copper heat sink is highly effective, as the TO-Can package is designed with a highly conductive base. However, for continuous operation at the maximum 3.5W output, we strongly recommend integrating a TEC or forced-air cooling system to maintain the operating temperature within the optimal 0°C to +50°C range and preserve the extensive >10,000-hour lifespan.

What is the advantage of using TTL modulation in machine vision applications?

Transistor-Transistor Logic (TTL) modulation allows the laser to be turned on and off at extremely high frequencies. In machine vision, this means the laser can be perfectly synchronized with the camera's shutter speed. This synchronization prevents image blurring, reduces the overall thermal load on the diode, and ensures the highest possible contrast for capturing rapid, automated assembly line processes.

Is the fiber-coupled option available for the entire 1mW to 3.5W power range?

We offer fiber coupling solutions across the entire power spectrum to suit varying demands. For low-power applications (1mW - 50mW), single-mode fibers are typically used to maintain a pristine, diffraction-limited beam. For high-power requirements up to 3.5W, we utilize robust multimode fibers designed to handle high optical densities without degradation, perfect for medical laser therapy delivery systems.

How does the 520nm-532nm wavelength compare to standard 650nm red lasers in outdoor environments?

The human eye's photopic vision peaks around 555nm, meaning green light in the 520nm-532nm range appears up to four times brighter than a red 650nm laser of the exact same optical power. This makes our green laser diode the mandatory choice for outdoor surveying equipment, construction alignment tools, and any application where intense ambient sunlight would completely wash out a standard red laser beam.
