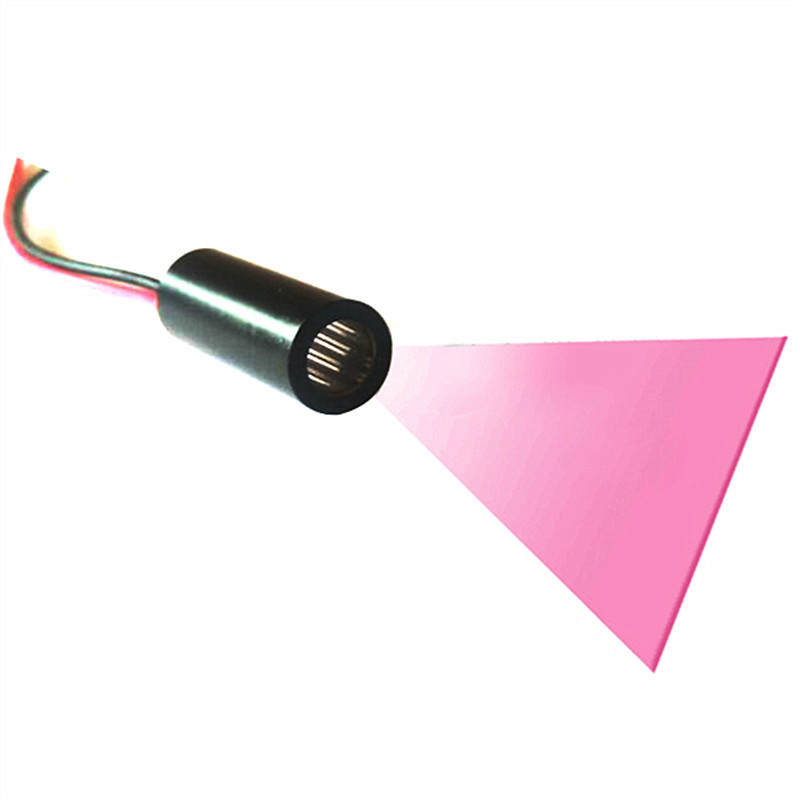

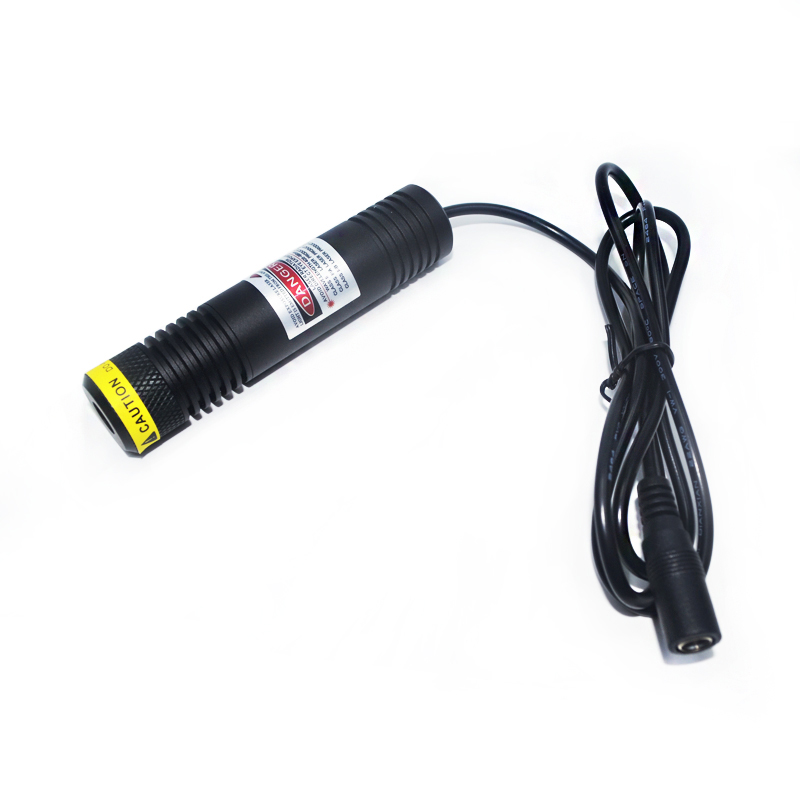

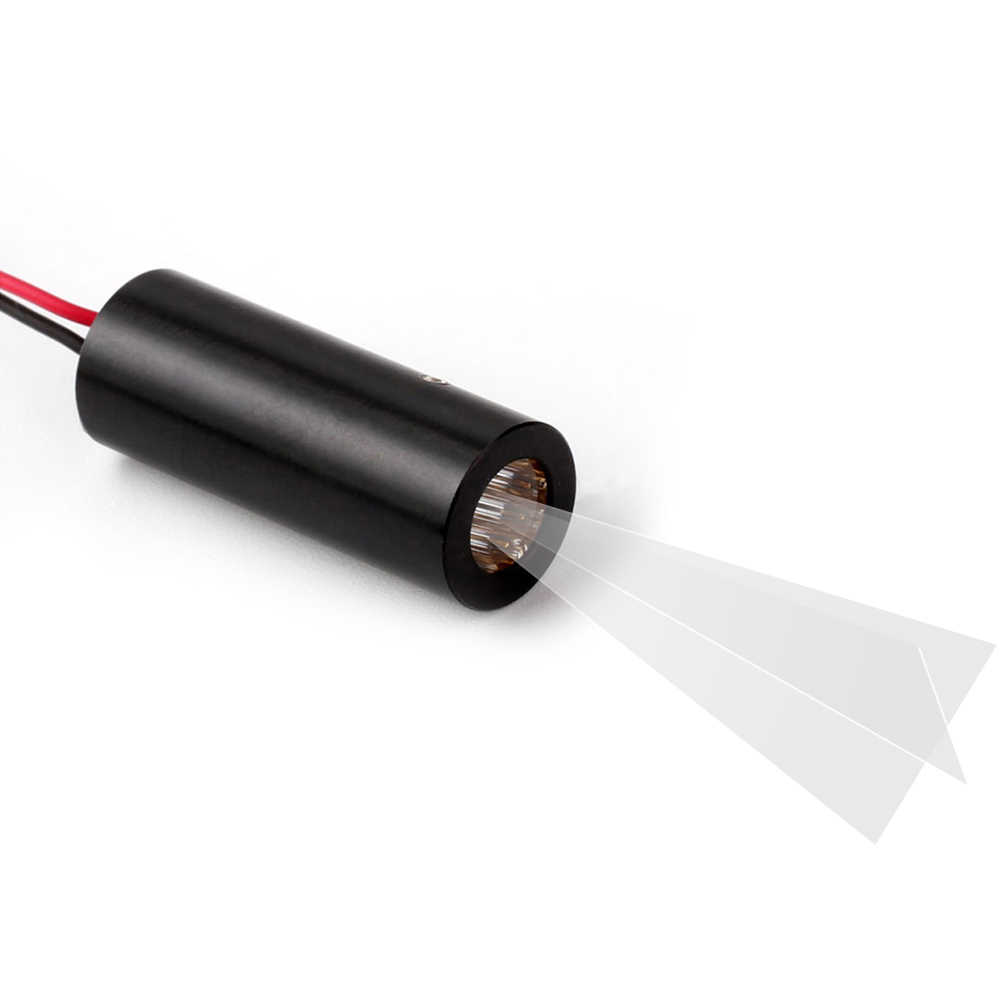

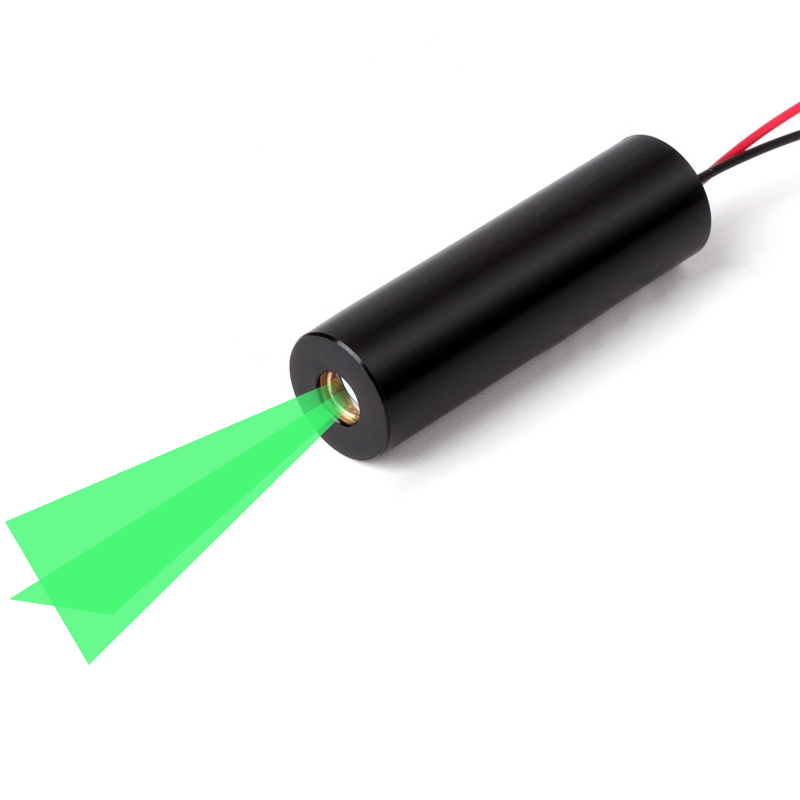

This Industrial Laser Module offers a versatile and rugged solution for demanding OEM and wholesale applications, featuring multiple sizes, wavelengths, and focus options. Designed for precision alignment, marking, and measurement, it delivers reliable performance across various industrial environments.

- Available in Ø20x90mm (focusable with lock ring), Ø22x100mm (fixed focus), and 40x40x78mm (focusable with cooling fan) sizes
- Supports multiple laser patterns: Dot, Line, Cross, and DOE, with output power ranging from 5mW to 2500mW
- Offers a wide wavelength selection from 405nm Violet to 980nm Infrared, including Blue, Green, Red, and Invisible IR
- Operates on 5V or 12V DC, with rugged industrial design suitable for OEM/wholesale supply

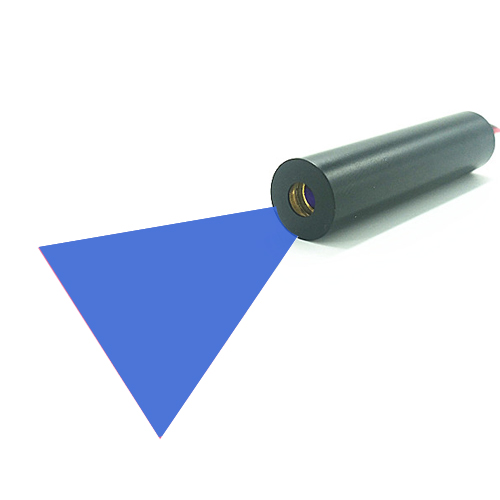

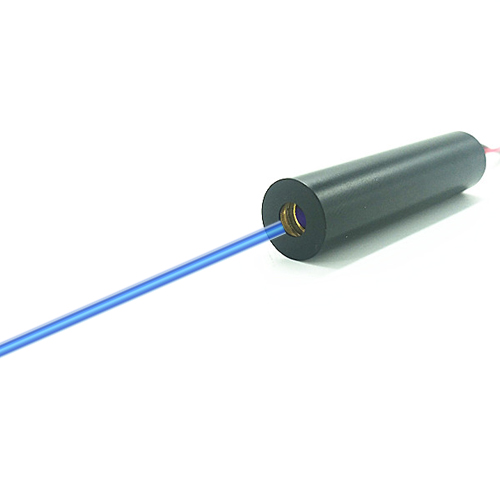

This Blue Laser Module delivers high-precision laser output with exceptional beam quality and stability across a versatile range of wavelengths and power levels. Designed for OEM integration and wholesale supply, it offers reliable performance for industrial, scientific, and alignment applications.

- Available in diameters from Ø6mm to Ø12mm with wavelengths of 405nm, 450nm, and 488nm
- Output power options from 1mW to 200mW, supporting Dot, Line, and Cross Line patterns
- Operating voltage of 3V or 5V DC with APC/ACC and CW modes for consistent performance
- Ideal for OEM/wholesale use in laser alignment, measurement, and visual targeting systems

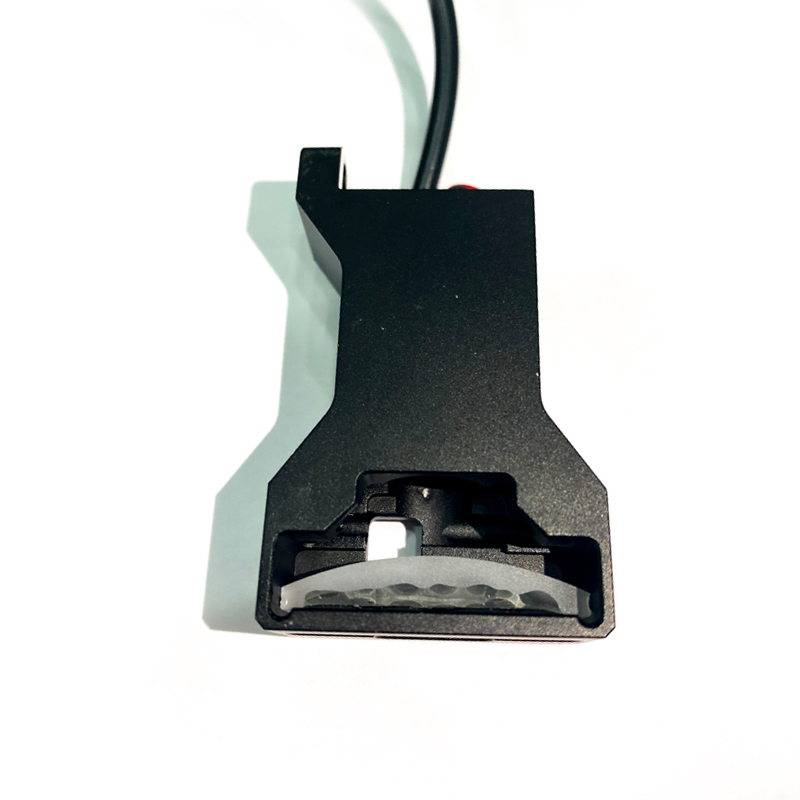

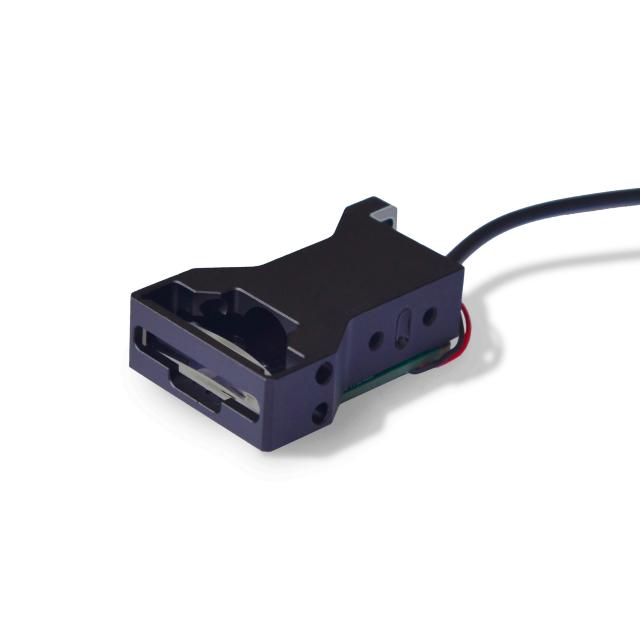

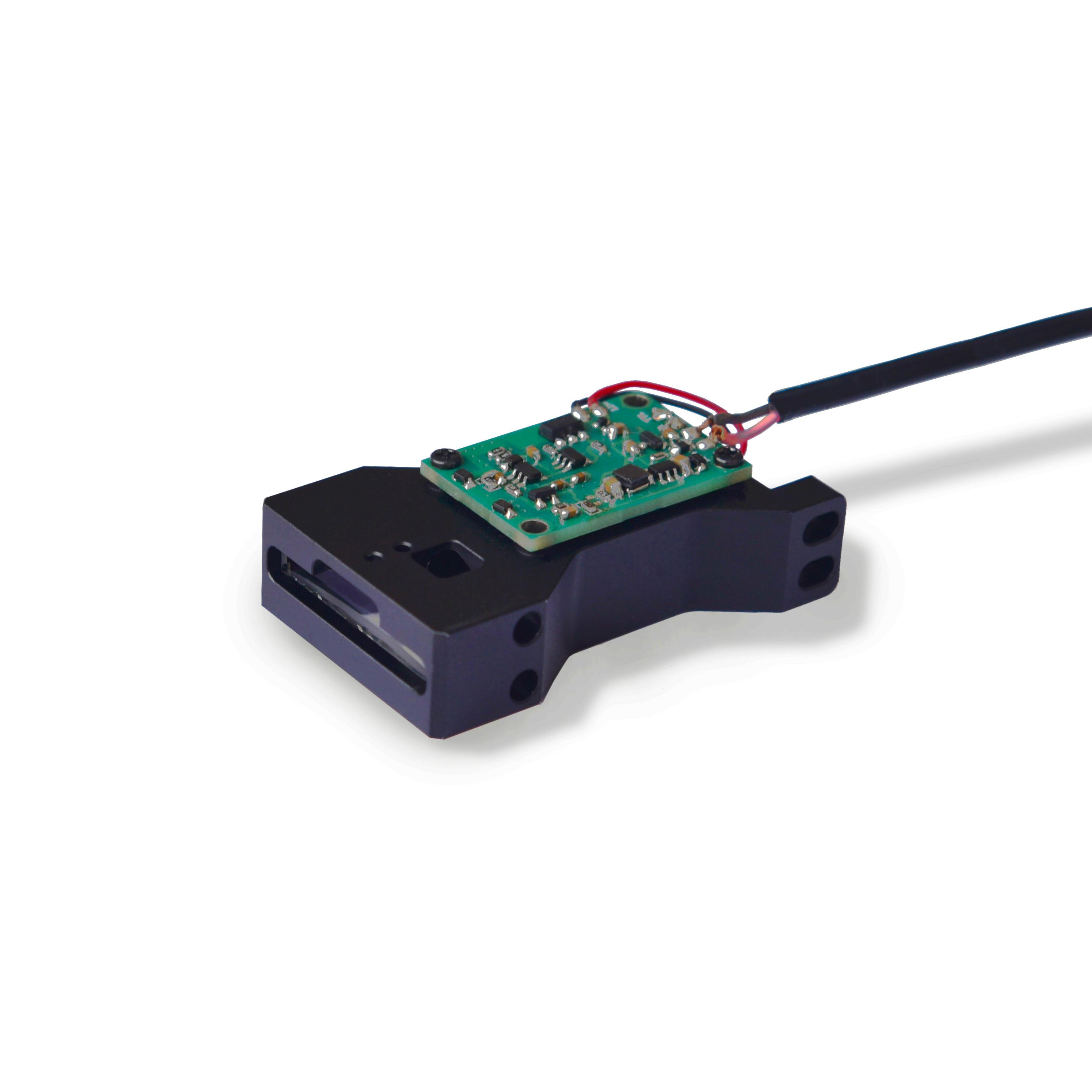

This Telecentric Uniform Line Laser delivers exceptional beam uniformity and straightness for precision machine vision and industrial alignment applications. Engineered with a telecentric optical design, it ensures consistent line thickness and high Gaussian uniformity across a wide working distance range, making it ideal for OEM integration and wholesale supply.

- Wavelength: 405–980nm | Power: 30–2000mW | Power Stability: 5%
- Working Distance: 10–5000mm | Line Straightness: 0.05% | Line Uniformity: ≥85%
- Fan Angle: 15°, 30°, 45°, 60°, 75° | Line Thickness (1/e²): 10–2000μm
- Input Voltage: 5–24V DC | TTL Modulation: 0V Off, 3.3V On | MTTF: 15,000 hours

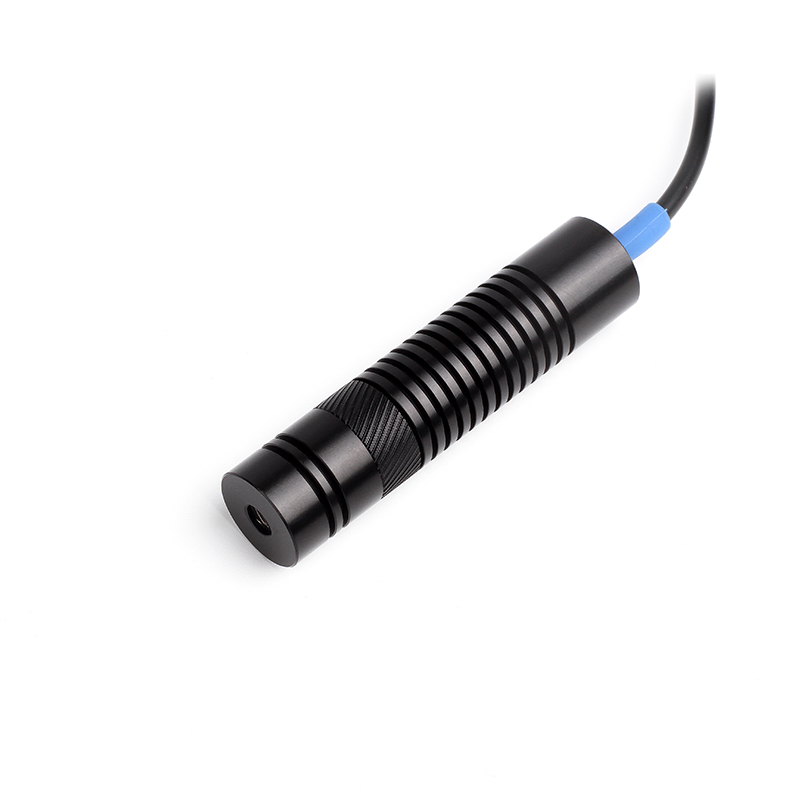

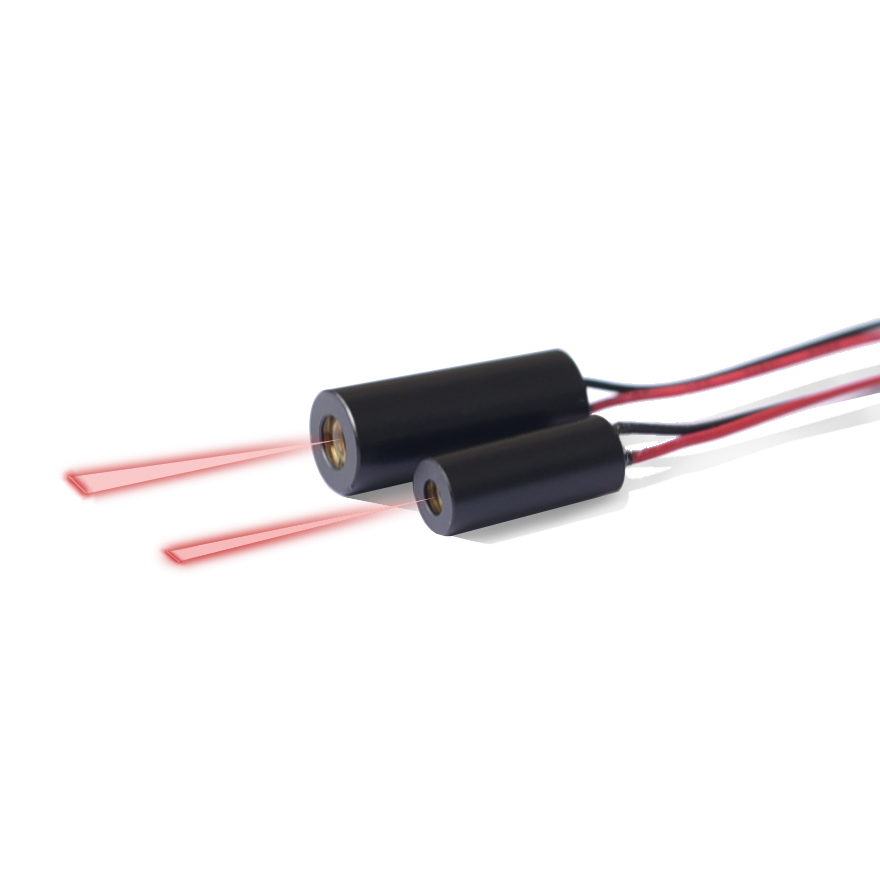

The Uniform Line Laser delivers exceptional beam uniformity and straightness for precision alignment and machine vision applications. With a wide wavelength range from 405 to 980 nm and selectable fan angles, this compact laser module provides reliable, high-performance line projection for industrial integration.

- Wavelength: 405-980 nm with output power from 10 to 200 mW
- Fan angle options: 15°, 30°, 45°, 60°, 75°, 90°, and 110°
- Line uniformity ≥ 80% with straightness of 0.05% and working distance up to 2000 mm
- Input voltage: 5-24 Vdc with CW, TTL, or analog modulation; service life up to 15,000 hours

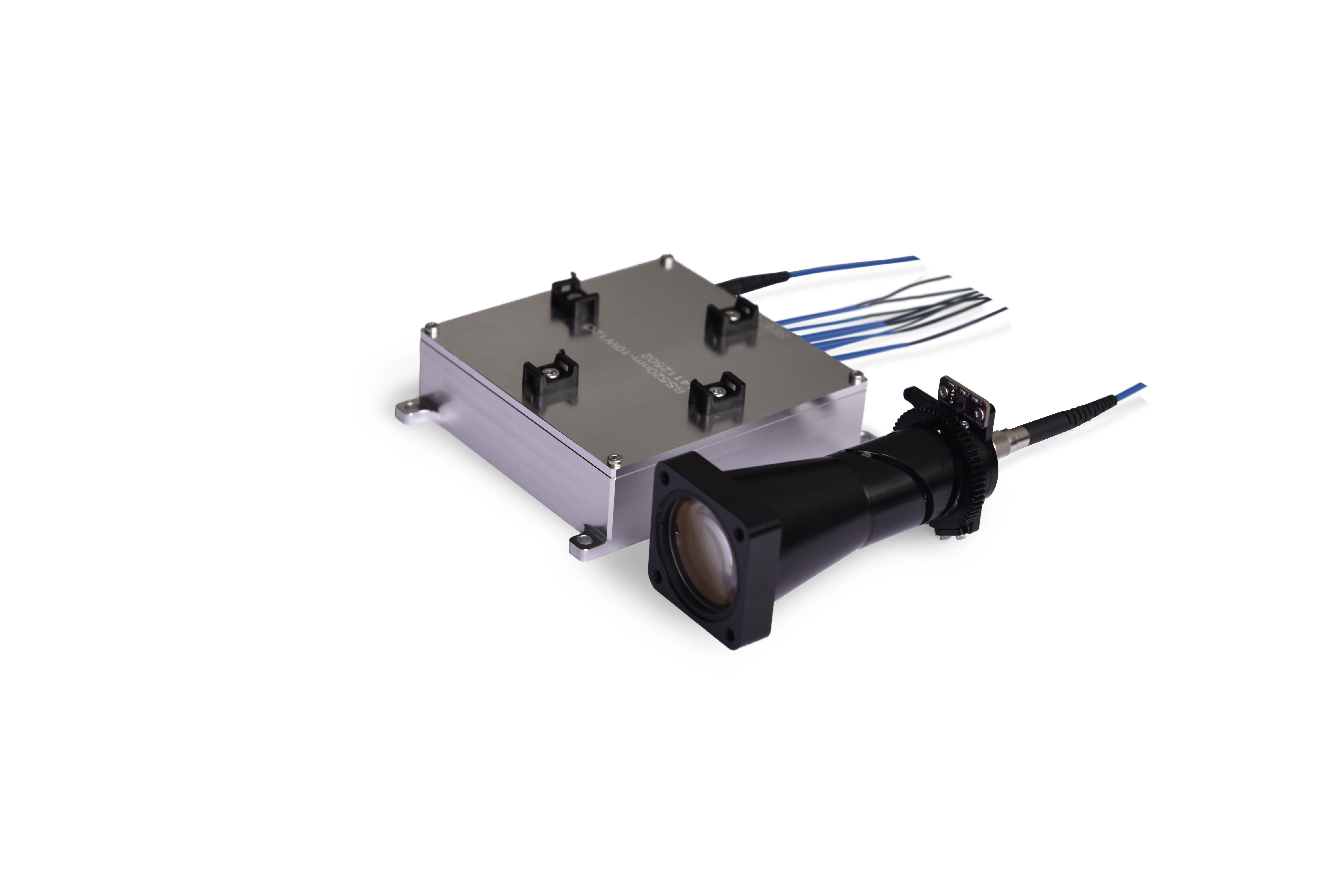

The Dazzler Laser is a high-performance, dual-wavelength optical deterrent system engineered for effective bird aversion in demanding outdoor environments. It combines stable, high-power green and white light outputs with a rugged, weather-resistant design to deliver reliable, long-term pest control solutions for commercial and agricultural applications.

- Dual-wavelength output: Green laser (525±7 nm, ≤15 W) and white light (5500-7500 K, 10,000 lm) for versatile deterrence
- Wide beam divergence range: Green 0.086-0.86°, white 2.2-20.4° (FWHM) for targeted or broad coverage
- Robust environmental tolerance: Operates from -30 to 60°C, with total power consumption ≤160 W
- Compact and durable: Weighs ≤4 kg, designed for continuous outdoor use with stable output

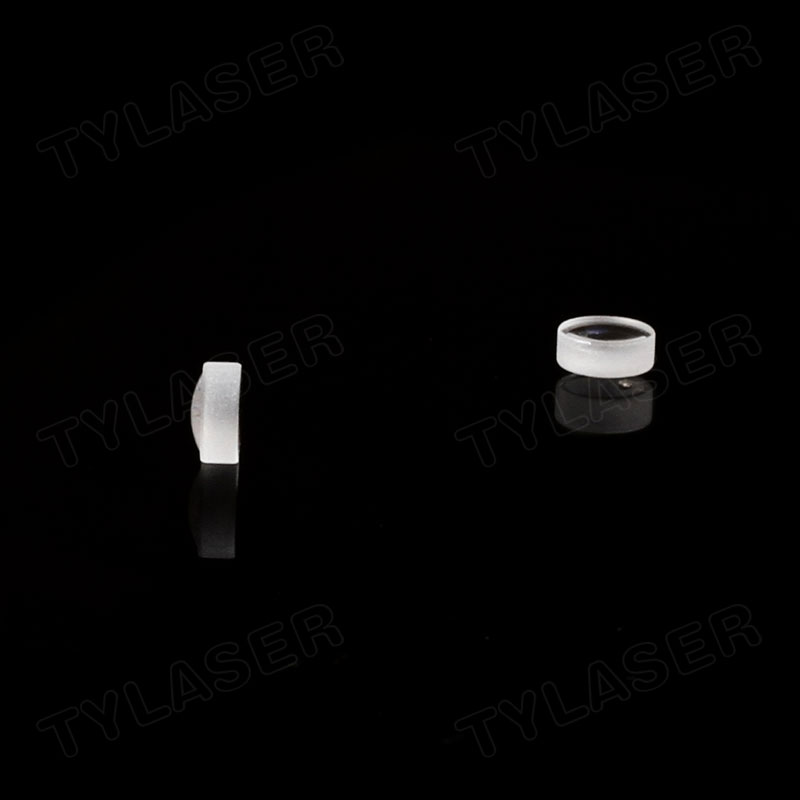

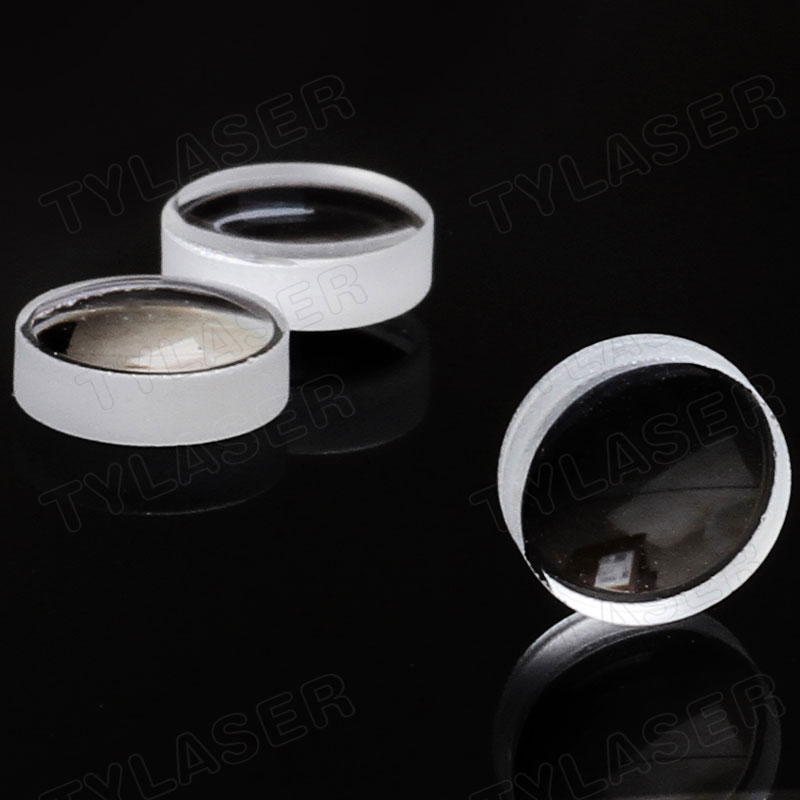

This high-performance Aspheric Collimator Lens series is engineered for precision laser diode collimation, delivering high transmission and low aberration across a broad range of optical specifications. Designed to maximize beam quality and system efficiency, these lenses offer a versatile solution for demanding photonic applications.

- Wide EFL range from 1.14 mm to 24.06 mm with NA from 0.15 to 0.64 for flexible system integration
- Optimized for collimation with low wavefront error and high transmission across multiple wavelengths
- Available in outer diameters from 1.5 mm to 10.5 mm with various clear apertures and working distances
- Ideal for laser diode collimation, fiber coupling, and precision beam shaping in industrial and research setups

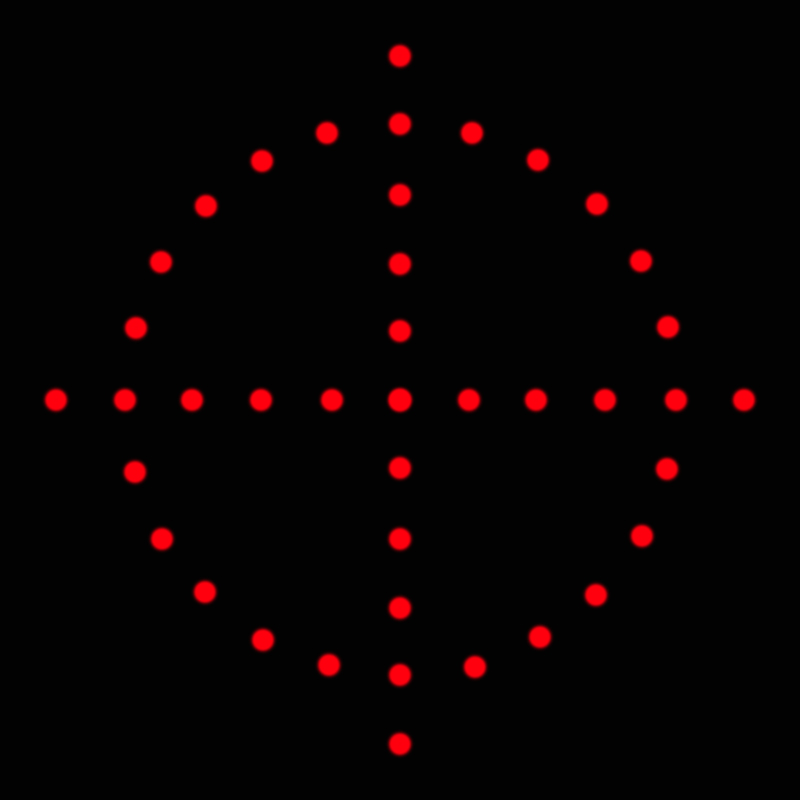

Precision-engineered Diffractive Optical Elements (DOEs) for generating line arrays, dot grids, crosshairs, and circles, specifically designed for high-accuracy 3D alignment and machine vision applications. These elements offer customizable pattern geometries and are available for OEM and wholesale supply.

- Available patterns include single and multi-line arrays (square/rectangular), dot grids, crosshairs, and viewfinders with circles
- Design wavelengths range from 450 nm to 660 nm, with optimum performance across 425–750 nm
- Pattern sizes and angles are specified at a 100 mm distance, with typical projection angles from 5° to 67°
- Ideal for industrial alignment, laser positioning, and optical metrology systems

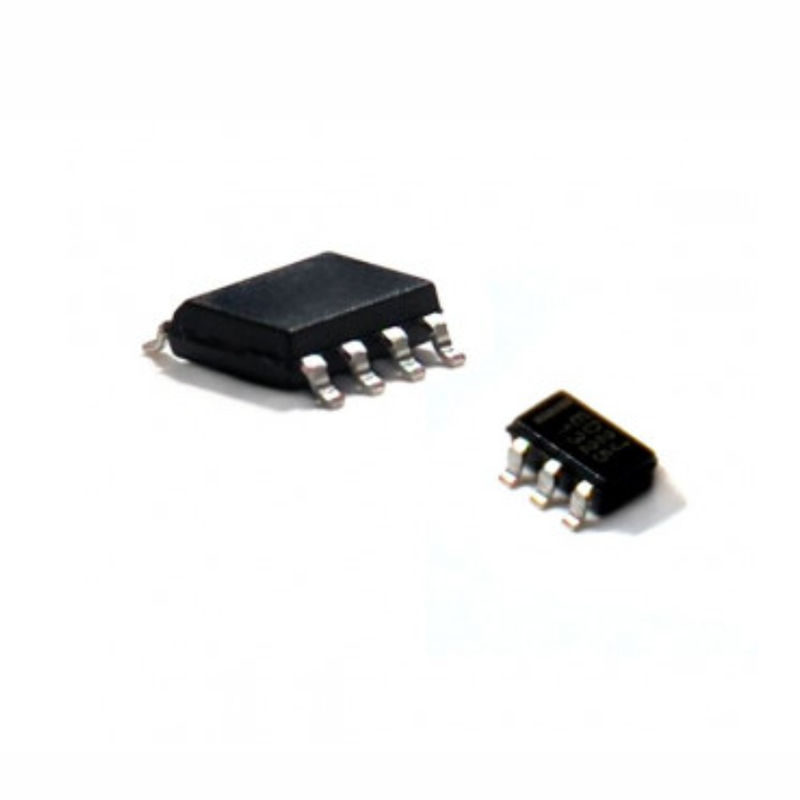

This high-precision Laser Driver IC series delivers programmable, efficient current control for portable and industrial laser diode applications, integrating essential protection features such as thermal shutdown, soft-start, and reverse polarity protection. Designed for both common cathode and common anode configurations, these drivers support APC and ACC operating modes with expandable current capabilities via external power transistors.

- FX6003: APC mode, 20mA–150mA programmable current, thermal shutdown, soft-start, SOT23-6 package
- FX6006: APC/ACC dual mode, 2mA–500mA programmable current, soft-start, DFN8 (2×2) package
- FX6017: Common cathode APC, 200mA internal drive, expandable with external transistor, reverse polarity protection, DFN8 (2×2)
- FX6103: Common anode ACC, 10mA–250mA adjustable current, reverse voltage protection, soft-start, SOT23-6
- FX6110: Common anode ACC, 1A internal drive, expandable with external transistor, programmable current, reference voltage output, DFN8 (2×3)

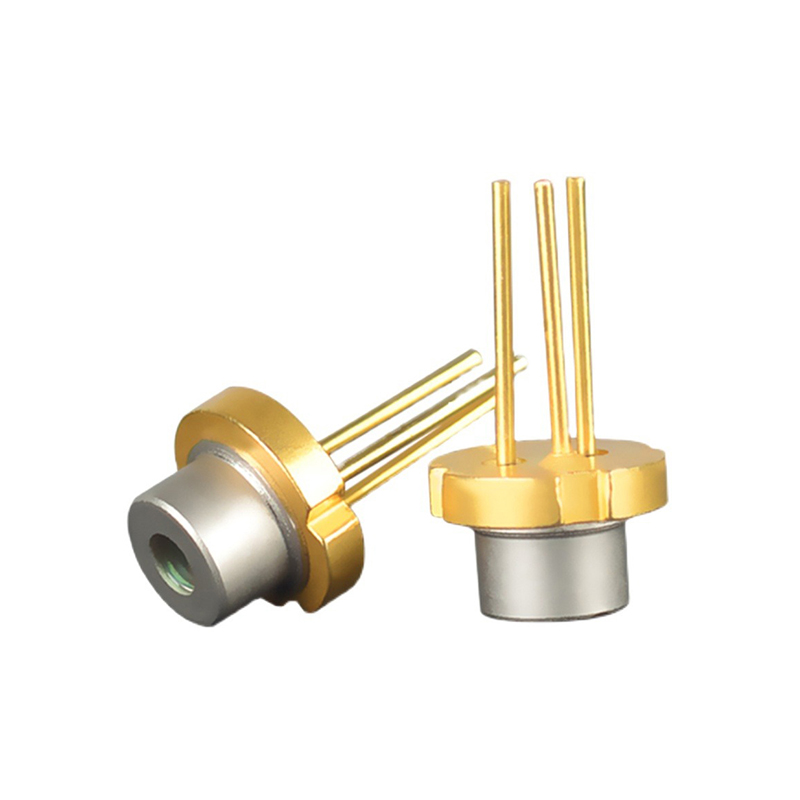

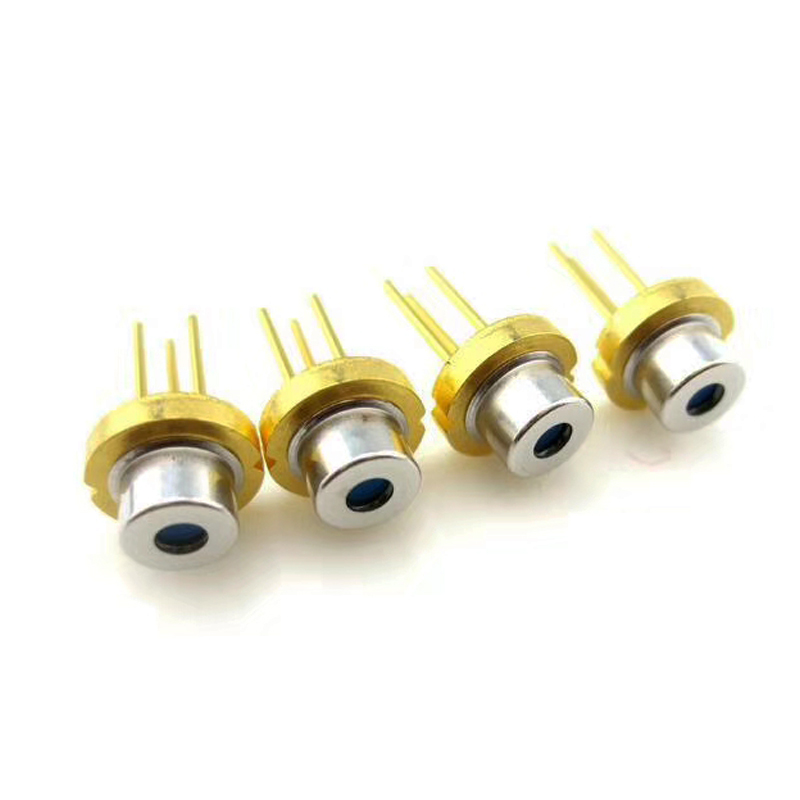

High-performance Red Laser Diodes delivering precise visible light output from 635nm to 685nm, with power ranging from 5mW to 2400mW. Ideal for industrial alignment, medical equipment, and scientific instrumentation, these diodes offer reliable single-mode or multi-mode operation in compact Ø5.6mm and Ø9mm packages.

- Wavelength options: 635nm, 650nm, 660nm, 670nm, 685nm for versatile red light applications
- Output power: 5mW to 2400mW, supporting both low-power and high-power requirements
- Package diameters: Ø5.6mm and Ø9mm, with single-mode and multi-mode configurations
- Operating temperature range: -10°C to +85°C, ensuring stable performance in demanding environments

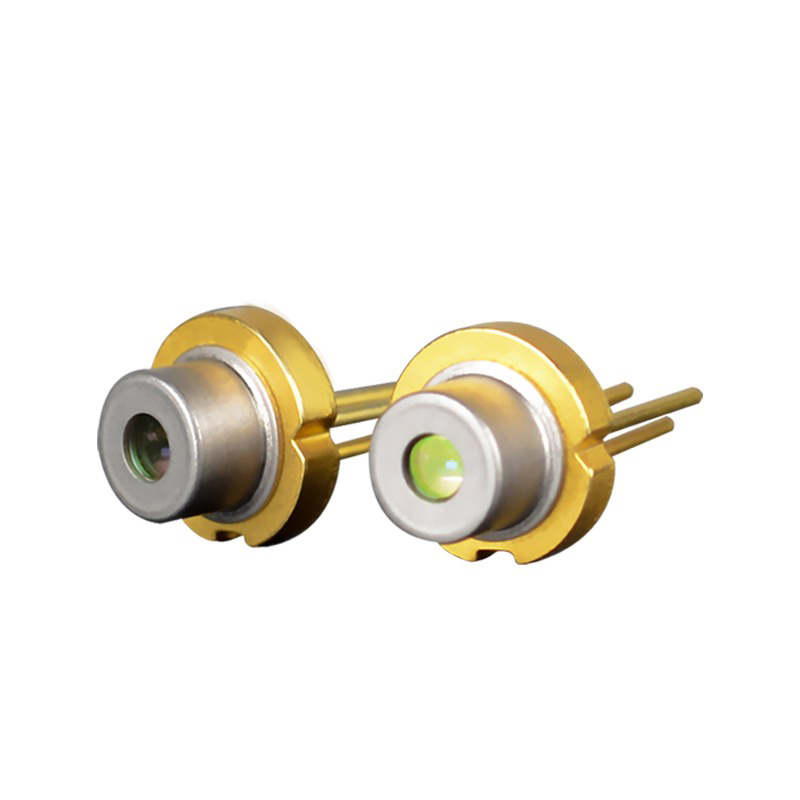

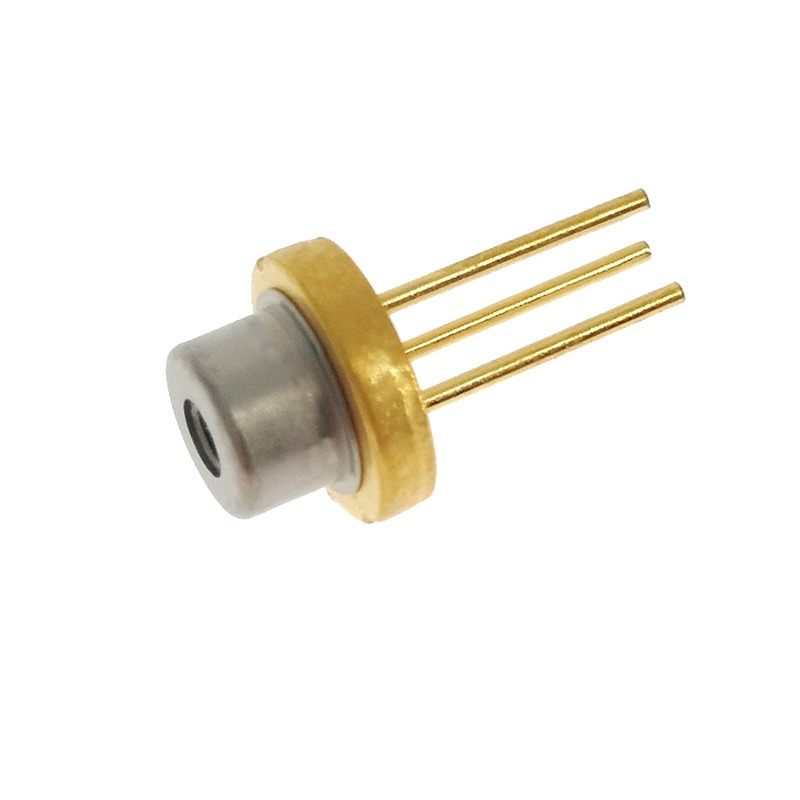

High-performance single-mode green laser diodes delivering stable 520nm wavelength output from 10mW to 135mW, ideal for OEM integration and wholesale supply. These compact laser diodes offer reliable operation across a wide temperature range, ensuring consistent performance in demanding industrial and scientific applications.

- Wavelength: 520nm (single-mode), with options for 505nm and 532nm
- Output Power: 10mW to 135mW, available in multiple power grades
- Package Diameter: Ø5.6mm and Ø3.8mm for flexible integration
- Operating Temperature: -10°C to +70°C, with OEM/wholesale support

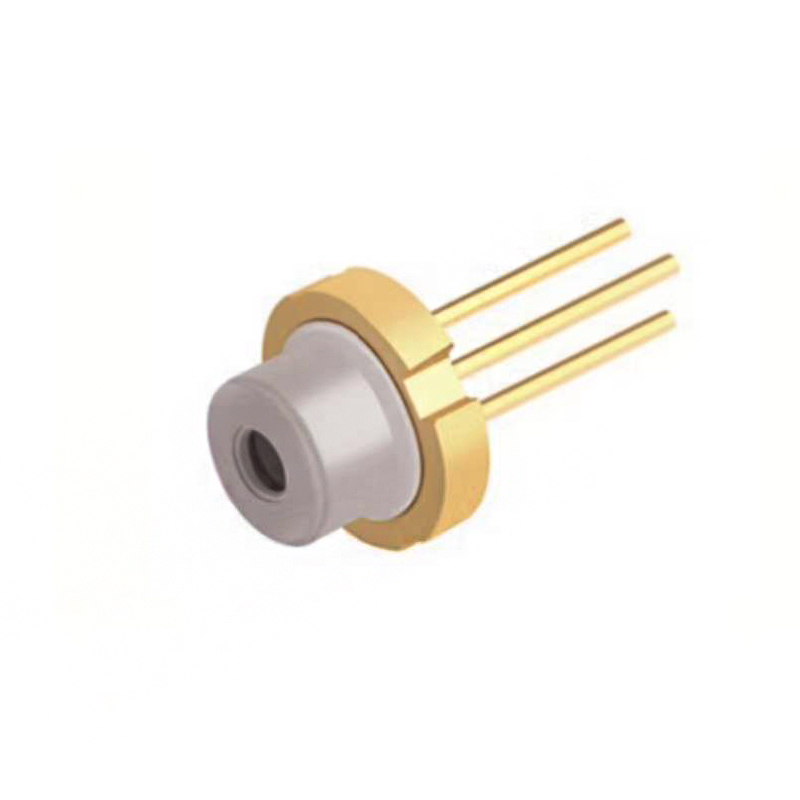

High-performance Infrared Laser Diodes covering a broad wavelength range from 780nm to 1550nm, with output power from 5mW to 12W. Available in both single-mode and multi-mode configurations, these diodes are designed for diverse OEM and wholesale applications requiring reliable, high-quality laser sources.

- Wavelength options: 780nm, 808nm, 830nm, 850nm, 905nm, 940nm, 980nm, 1064nm, 1310nm, and 1550nm
- Output power range: 5mW to 12W, supporting low to high-power applications
- Package diameters: Ø5.6mm and Ø9mm, with both single-mode and multi-mode models
- Wide operating temperature range: -40°C to +70°C, suitable for industrial and commercial use

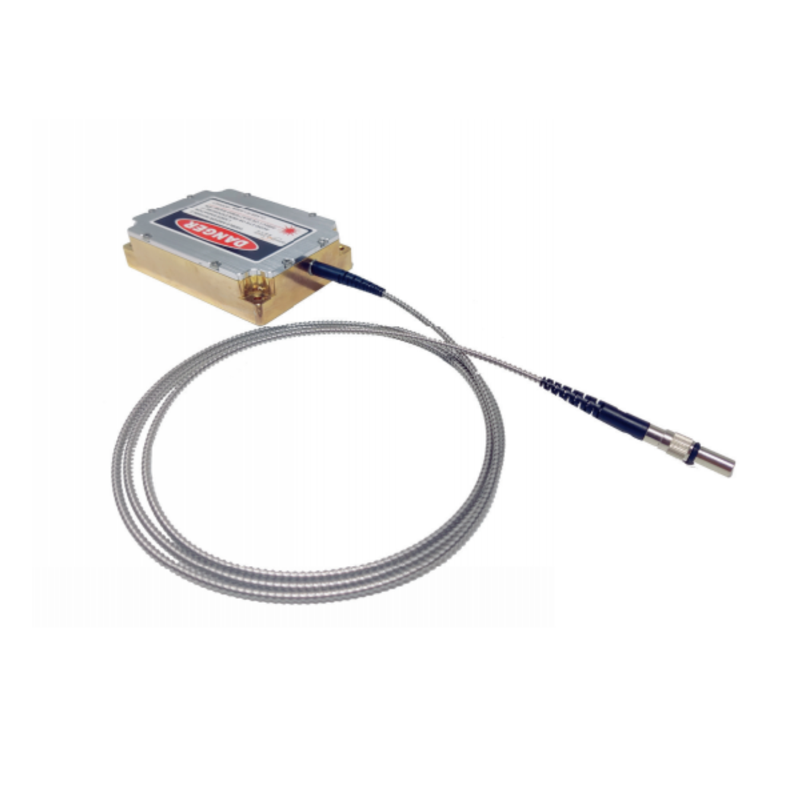

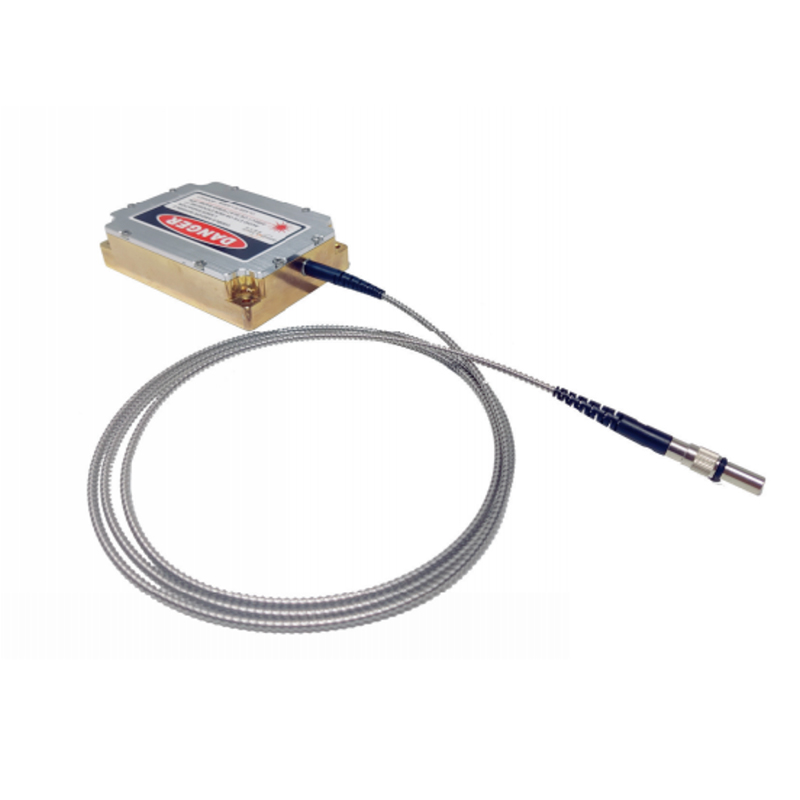

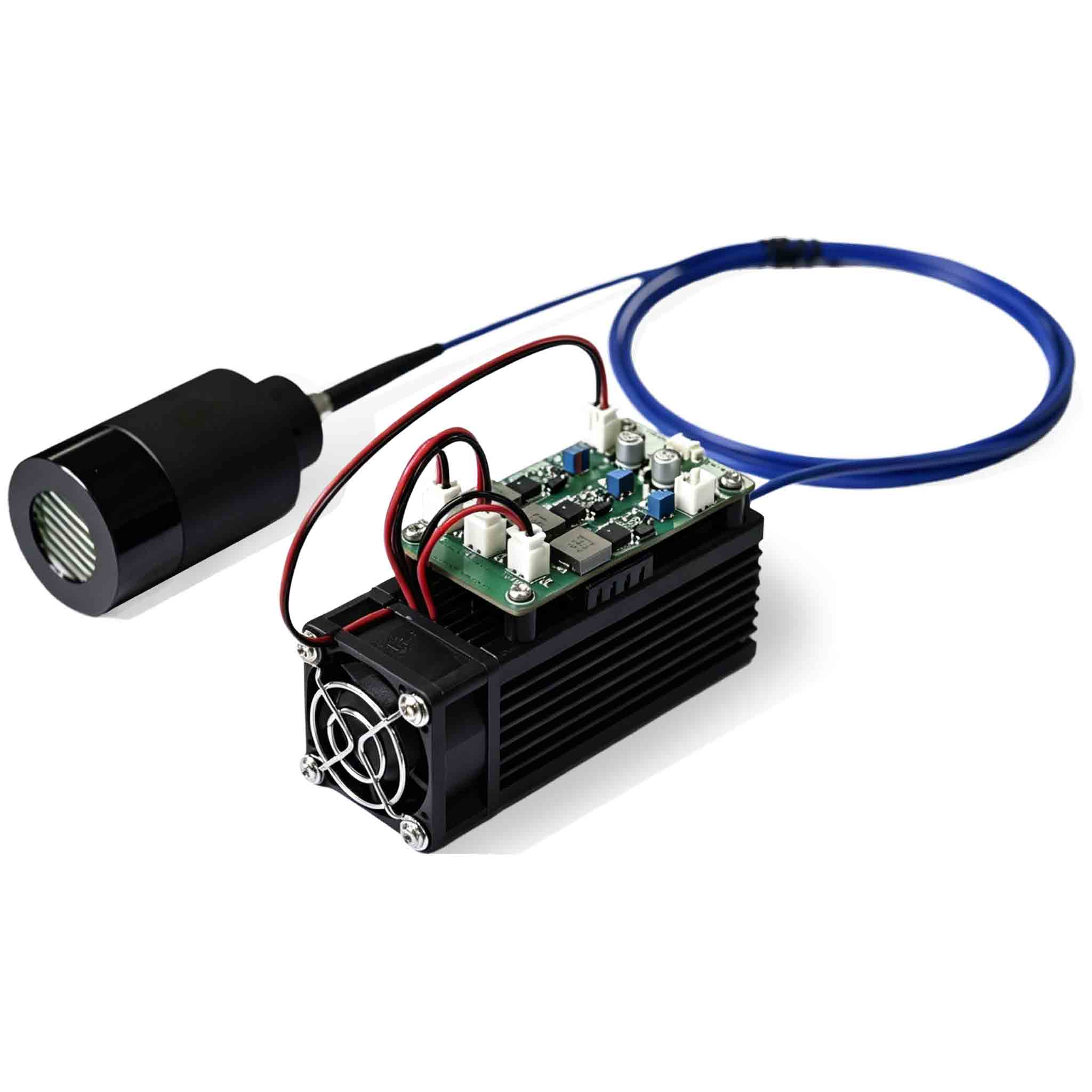

The RGB Fiber Laser delivers stable, high-precision multi-wavelength output with ACC control and a wide color temperature range, making it ideal for advanced 3D laser display and industrial processing applications.

- Wavelengths: 638nm, 525nm, 450nm with fiber output power options from 3W to 16W
- Color temperature adjustable from 4000K to 7000K with temperature coefficient of 0.3
- Fiber core: 4/124μm (single-mode) or 49/125μm (multi-mode), NA 0.12, connector options SMA905/FC/ST
- Operating temperature: 10-35°C, storage: 10-60°C, low MOQ available

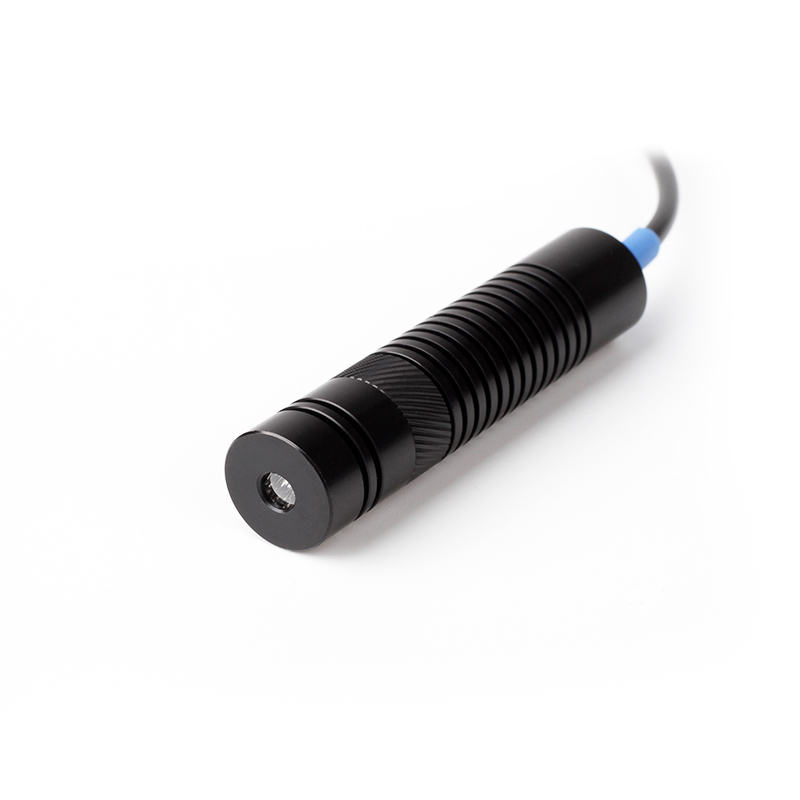

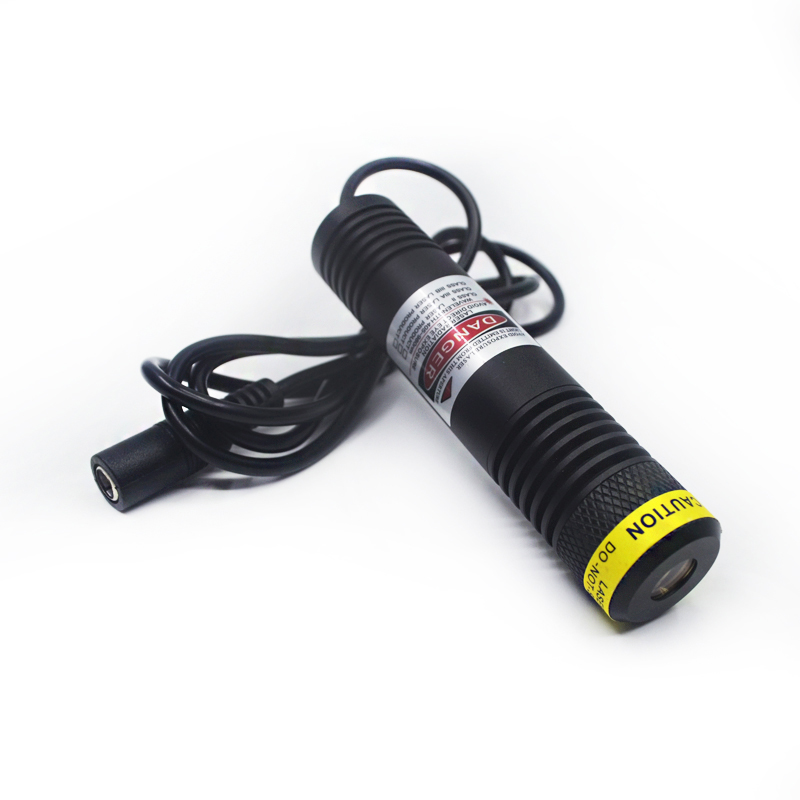

The DOE Laser is a high-precision diffractive optical element module designed for stable and repeatable pattern projection in industrial and medical applications. Featuring an adjustable focus with a locking ring and advanced APC/ACC driver circuitry, it ensures consistent output power and pattern clarity across varying conditions.

- Compact Φ20*90mm housing with DOE pattern output
- Wide operating voltage range: 3V-24V DC
- Adjustable focal length with locking ring for precise beam control
- Output power: 5-200mW; Wavelength: 405-980nm
- Ideal for industrial equipment, medical treatment, and laser marking

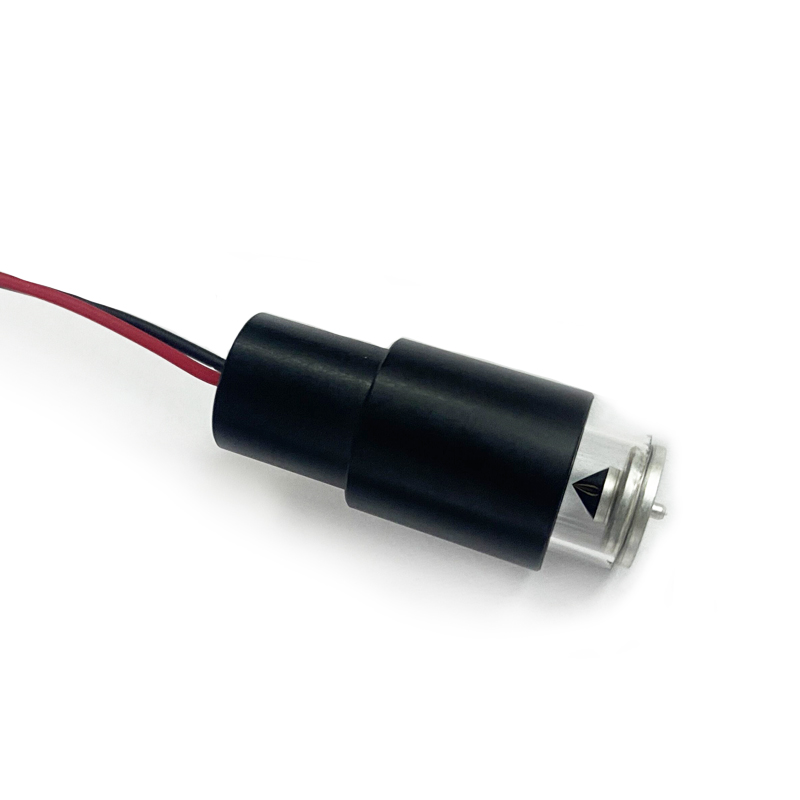

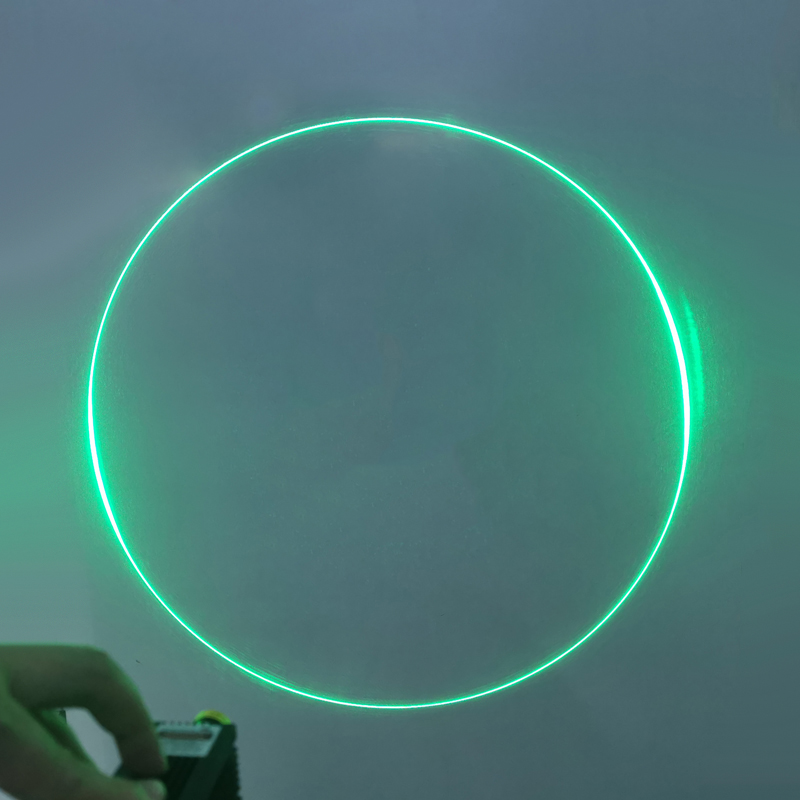

The 360° Line Laser delivers full-circle projection with output power ranging from 1 to 200mW, supporting multiple wavelengths from 405 to 650nm. Designed for OEM and wholesale applications, this compact laser module offers versatile integration for industrial alignment, positioning, and visual guidance systems.

- Compact size: 12x29.5mm with 360° laser pattern
- Output power options: <10mW to <200mW (405–650nm)
- Wavelength range: 405nm, 450nm, 505nm, 520nm, 635nm, 650nm
- Operating voltage: 3V or 5V DC, suitable for OEM/wholesale supply
