Blue Laser Module

Product Overview

• As a premier manufacturer and global supplier of precision optical components, we present the advanced Blue Laser Module.

• Engineered for seamless industrial integration and relentless continuous operation.

• Delivers high-efficiency optical output ranging from 1W to 20W to meet diverse processing demands.

• Housed in robust aviation aluminum for superior heat dissipation and structural integrity.

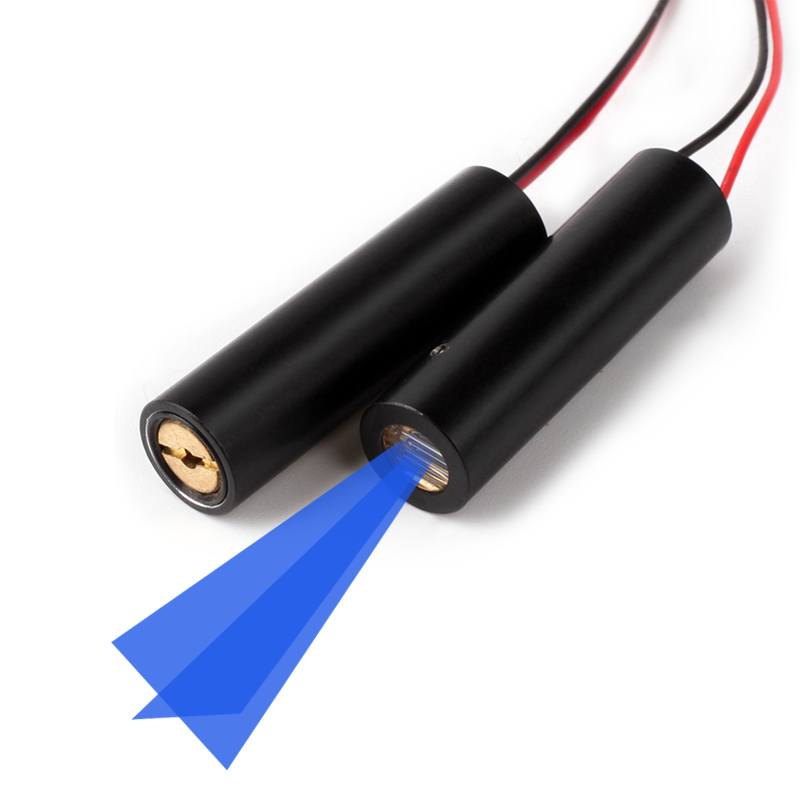

• Offers versatile beam shapes including dot, circular dot, line, and crosshair for customized applications.

Product Description

Step into a new realm of precision processing with our high-performance Blue Laser Module. When you hold this module, the cold, solid weight of the aviation-grade aluminum housing immediately communicates its industrial-grade craftsmanship. It is not merely a component; it is the heartbeat of your automated processing equipment. Designed to slice through dense materials with surgical accuracy, the intense, highly concentrated blue beam leaves behind crisp, immaculate edges without the charred residue often associated with inferior optics. You will hear the quiet, steady hum of the high-efficiency cooling fan, a reassuring sound that guarantees optimal thermal management even during grueling, continuous production cycles. By integrating this module into your assembly lines or engraving stations, you eliminate costly downtime and frequent replacements. The exceptional beam quality translates directly into faster processing speeds and pristine final products, elevating your operational capabilities and ensuring your clients receive nothing but flawless results. Every detail, from the metal-can diode packaging to the precision-machined lenses, is meticulously engineered to provide unwavering stability, transforming your most demanding projects into effortless achievements.

Product Specifications

Key Features & Highlights

Elevate your production standards with an optical module engineered for uncompromising excellence. We understand that in high-stakes manufacturing and precision engineering, every millimeter and every millisecond counts. This unit is meticulously crafted to eliminate the common pain points of inconsistent power delivery and rapid thermal degradation, ensuring your operations run smoothly and profitably.

• Unwavering Precision: Achieve microscopic accuracy with a tightly compressed beam that ensures razor-sharp engraving lines and perfectly smooth cutting edges, minimizing material waste.

• Continuous Operation Capability: Say goodbye to forced cooling breaks. The advanced thermal architecture allows for round-the-clock operation, maximizing your daily output.

• Intelligent Power Management: Built-in dynamic feedback loops constantly monitor and adjust the current, preventing power drops and ensuring uniform processing depth across large-scale projects.

• Rugged Durability: The heavy-duty metallic construction shields sensitive optical components from vibrations, dust, and accidental impacts in harsh workshop environments.

• Effortless Deployment: Designed with standardized mounting points and universal wiring interfaces, allowing your technicians to install and calibrate the unit in minutes rather than hours.

Core Performance & Beam Quality

At the heart of this module lies an exceptional optical engine capable of delivering true optical output power ranging from 1W up to a formidable 20W. Operating within the highly effective 445nm to 455nm wavelength spectrum, this blue laser harnesses advanced Fast Axis Collimation (FAC) technology and premium aspherical glass lenses. This sophisticated optical alignment compresses the beam into an incredibly small, ultra-high energy density focal point. For your operations, this means unparalleled cutting penetration and the ability to render microscopic details with absolute clarity.

• True Optical Power: Delivers verified, unexaggerated energy output, ensuring you have the exact cutting force required for dense materials.

• FAC Spot Compression: Focuses the energy into a microscopic footprint, significantly increasing the cutting speed and preventing the burning of surrounding areas.

• Aspherical Glass Lenses: Provides crystal-clear light transmission without distortion, maintaining beam integrity over long distances.

• Flawless Edge Finish: The high energy density vaporizes material instantly, leaving behind smooth, clean edges that require zero post-processing.

Thermal Management & Lifespan

Continuous, heavy-duty operation demands a thermal management system that never falters. We recognize that equipment downtime directly impacts your bottom line. Therefore, this module is encased in a massive, precision-milled aviation aluminum heatsink featuring deep cooling fins. Paired with a high-RPM, whisper-quiet cooling fan, this system rapidly draws heat away from the critical diode junction. This aggressive heat dissipation guarantees an industrial-grade lifespan exceeding 10,000 hours, drastically reducing your maintenance overhead and replacement cycles.

• Aviation Aluminum Heatsink: Maximizes surface area for rapid thermal exchange, keeping the core temperature well within optimal limits.

• High-Efficiency Cooling Fan: Delivers a constant, high-volume airflow to instantly expel accumulated heat, ensuring stable performance during 24/7 operations.

• 10,000+ Hour Lifespan: Engineered for longevity, providing years of reliable service and an exceptional return on your equipment investment.

• Thermal Degradation Prevention: By maintaining optimal temperatures, the module prevents the gradual loss of optical power, ensuring day-one performance years down the line.

Driver Control & Stability

Consistency is the cornerstone of professional processing. This module is equipped with a highly sophisticated internal driver board featuring intelligent feedback control circuits, including Automatic Power Control (APC) and Automatic Current Control (ACC). Whether you are utilizing a standard DC 12V supply or a broader 10-36V input, the driver ensures absolute electrical stability. Supporting high-frequency TTL and PWM modulation up to 10kHz, it allows for instantaneous power adjustments, translating your complex digital designs into flawless physical reality without a hint of beam flickering or power decay.

• APC & ACC Circuits: Continuously monitors and regulates the electrical flow, guaranteeing a steady optical output regardless of external voltage fluctuations.

• High-Frequency Modulation: Supports rapid TTL/PWM signals up to 10kHz, enabling smooth grayscale engraving and precise depth control.

• Wide Voltage Compatibility: Accepts 10-36V inputs, offering flexible integration with a vast array of existing industrial power supplies.

• Flicker-Free Output: Eliminates micro-stutters in the beam, ensuring continuous, unbroken lines during high-speed scanning and cutting.

Compatibility & Integration

Time spent on complex equipment modifications is time lost on production. We have engineered this module with a strict plug-and-play philosophy to seamlessly merge with your existing infrastructure. Featuring standardized wiring terminals and comprehensive adapter cables, it is universally compatible with mainstream CNC routers, advanced 3D printers, and diverse automated alignment systems. This thoughtful design minimizes the need for secondary development, allowing your engineering teams to upgrade your machinery swiftly and efficiently.

• Plug-and-Play Architecture: Drastically reduces installation time, allowing you to resume production almost immediately after unboxing.

• Universal Adapter Cables: Eliminates the frustration of incompatible wiring, providing secure, instant connections to various controller boards.

• Broad System Compatibility: Integrates flawlessly with popular CNC frameworks, 3D printing platforms, and custom industrial automation setups.

• Streamlined Upgrades: Empowers you to significantly boost the capabilities of your older machines without investing in entirely new processing centers.

Materials & Packaging

Industrial environments are unforgiving, exposing equipment to constant vibrations, dust, and mechanical stress. To withstand these harsh realities, the outer shell of this module is machined from solid aviation aluminum or rugged stainless steel. Deep inside this impenetrable fortress, the core diode is protected by a premium TO9 or TO90 Metal Can package. This specialized industrial packaging not only offers exceptionally low thermal resistance but also provides superior shock absorption, ensuring the delicate optics remain perfectly aligned even in the most demanding manufacturing facilities.

• Rugged Metal Housing: Defends against physical impacts, environmental contaminants, and the daily wear-and-tear of a busy workshop.

• TO9/TO90 Metal Can Packaging: Secures the semiconductor diode in a hermetically sealed, shock-resistant environment for ultimate reliability.

• Low Thermal Resistance: The metallic encapsulation facilitates rapid heat transfer away from the diode, working in tandem with the external heatsink.

• Vibration Immunity: Maintains precise optical alignment even when mounted on high-speed, fast-accelerating robotic arms or gantry systems.

Application Versatility

The true value of a tool lies in its versatility. This module is a multi-disciplinary powerhouse, engineered to excel across a vast spectrum of applications. It effortlessly slices through dense woods, MDF, dark acrylics, and thick leather, leaving pristine edges that elevate your craftsmanship. Beyond material processing, its intense, highly visible beam makes it an invaluable asset for industrial alignment, precision measurement, medical illumination, and high-brightness projection systems. Whatever your industry demands, this module adapts to deliver uncompromising results.

• Advanced Material Processing: Achieves deep cuts and high-contrast engravings on wood, leather, plastics, and coated metals with remarkable speed.

• Industrial Alignment: Projects razor-sharp dots, lines, or crosshairs for accurate positioning in sawmills, textile cutting, and automated assembly.

• Specialized Illumination: Provides intense, focused lighting solutions for medical devices, scientific research, and advanced optical testing.

• Customizable Deployments: Easily adjustable to meet the highly specific processing or measurement requirements of your unique client base.

Safety & Accessories

Powerful optical equipment requires uncompromising safety measures and intelligent accessories to maximize its potential. We prioritize the well-being of your operators and the quality of your output by offering a comprehensive suite of professional add-ons. From specialized safety goggles to protective magnetic shields, we ensure a secure working environment. Furthermore, the inclusion of precision fixed-focus blocks and advanced air assist nozzles transforms the cutting process, blowing away debris and smoke to reveal a flawlessly clean surface.

• Safety Goggles: Specifically calibrated to filter out intense blue light, protecting your workforce from accidental exposure and eye fatigue.

• Protective Shielding: Magnetic, easy-to-attach enclosures that contain stray reflections and prevent hazardous light leakage during operation.

• Air Assist Nozzles: Directs a high-pressure stream of air at the focal point, extinguishing flare-ups, removing charred debris, and dramatically improving the cut quality.

• Fixed-Focus Blocks: Eliminates the guesswork from calibration, allowing operators to set the perfect focal distance in seconds for repeatable, perfect results.

Why Choose Us

Selecting the right optical partner is a critical decision that impacts your entire production pipeline. As a dedicated manufacturer and trusted global supplier, we do not just sell components; we engineer solutions that drive your business forward. Our state-of-the-art production facilities adhere to the strictest quality control protocols, ensuring that every module that leaves our floor performs exactly to specification. By partnering with us, you gain access to factory-direct reliability, comprehensive technical support, and a supply chain you can depend on.

• Uncompromising Quality Control: Every unit undergoes rigorous 48-hour burn-in testing and optical calibration before shipment to guarantee out-of-the-box perfection.

• Expert Technical Support: Our team of seasoned optical engineers is always on standby to assist you with complex integrations and custom configuration requirements.

• Reliable Global Supply: We maintain robust inventory levels and streamlined logistics, ensuring your production lines never halt due to component shortages.

• Continuous Innovation: We heavily invest in research and development, constantly refining our designs to keep your machinery at the cutting edge of technological advancement.

Frequently Asked Questions (FAQ)

Navigating the technical nuances of advanced optical equipment is essential for optimizing your production setup. Below, we have compiled comprehensive answers to the most common technical inquiries from our global partners regarding integration, performance, and maintenance.

How does the Fast Axis Collimation (FAC) technology improve cutting performance?

FAC technology utilizes specialized micro-lenses to compress the inherently rectangular beam of the diode into a highly concentrated, nearly square focal point. This dramatic increase in energy density allows the beam to penetrate deeper into dense materials like MDF or hardwood at much faster speeds, significantly reducing charring and delivering a much cleaner, narrower kerf.

Can this module operate continuously without thermal degradation?

Absolutely. The integration of a massive aviation aluminum heatsink alongside a high-RPM cooling fan ensures rapid heat dissipation. This robust thermal architecture maintains the core temperature well within safe operational limits, allowing for 24/7 continuous deployment in industrial settings without experiencing power drops or lifespan reduction.

What is the advantage of the Automatic Power Control (APC) circuit?

The APC circuit acts as an intelligent governor for the system. It continuously monitors the optical output and instantly adjusts the drive current to compensate for any temperature fluctuations or voltage drops. This guarantees that the energy delivered to your workpiece remains absolutely constant from the first minute of operation to the last, ensuring uniform engraving depth and cutting consistency.

Is the unit compatible with standard 12V CNC controllers?

Yes, it is designed for seamless integration. The module supports standard DC 12V inputs, and certain models feature a wide 10-36V input range. Equipped with universal TTL/PWM modulation ports, it connects directly to the vast majority of commercial CNC routers, 3D printer mainboards, and industrial motion controllers without requiring complex voltage step-down converters.

Why is the TO9/TO90 Metal Can packaging crucial for industrial applications?

Unlike standard plastic or open packages, the TO9 and TO90 Metal Can encapsulation provides a hermetically sealed, highly conductive environment for the delicate semiconductor. This metal-to-metal contact drastically lowers thermal resistance, allowing heat to escape instantly. Furthermore, it offers superior mechanical rigidity, protecting the precise optical alignment from the severe vibrations typically found in heavy-duty manufacturing equipment.
