DOE Laser

Product Overview

As a leading manufacturer and direct supplier of advanced optical solutions, we engineer the DOE Laser to meet rigorous industrial demands. This precision module transforms standard beams into highly accurate structured light, optimizing visual recognition and spatial mapping for complex sensing equipment.

• Engineered for high-volume industrial integration and rapid deployment

• Direct-from-manufacturer customization for wavelengths, power, and precise patterns

• Built for continuous, stable operation in demanding, high-stress environments

Product Description

The DOE Laser represents the pinnacle of optical engineering, meticulously designed to seamlessly integrate into your most demanding technical setups. Encased in a precision-machined, cool-to-the-touch metal cylinder, this device exudes structural integrity and premium craftsmanship from the moment you handle it. When activated, it emits a flawlessly structured beam, entirely free from the visual noise, scattered artifacts, and blurred boundaries that plague inferior optical components. The light projection is crisp, razor-sharp, and geometrically absolute, ensuring that your optical sensors capture flawless data every single time. Beyond its sleek exterior, the internal architecture houses premium lens materials that guarantee exceptional thermal dissipation. This intelligent thermal management prevents the subtle heat build-up that often compromises beam stability during continuous, high-intensity operation. Whether deployed in a high-speed production line scanning micro-defects or integrated into a delicate medical instrument, the silent, unwavering performance of this laser module elevates the operational reliability of your entire system. By eliminating beam distortion and maximizing energy transmission, it directly solves the critical challenge of inconsistent optical recognition, allowing your equipment to function at peak efficiency without the need for constant recalibration, maintenance, or costly downtime.

Product Specifications

Review the precise technical parameters of our DOE Laser below. Each specification has been carefully calibrated by our engineering team to ensure maximum compatibility with your existing infrastructure, providing a reliable, high-performance foundation for your most complex optical projects.

Our commitment to precision ensures that every module delivered adheres strictly to these published parameters, guaranteeing seamless integration and predictable performance across your entire product line.

Key Features & Highlights

Equip your systems with an optical component that redefines precision and reliability. Our DOE Laser is engineered not just to project light, but to enhance the core functionality of your equipment, reducing downtime and drastically improving data accuracy.

Flawless Beam Uniformity

• Eliminates hot spots and uneven energy distribution, ensuring your optical sensors read data with absolute clarity and zero false positives across the entire projection area.

Compact & Standardized Integration

• The standardized Φ9mm form factor allows your engineering team to easily retrofit existing machinery or design new, streamlined systems without accommodating bulky spatial requirements.

Exceptional Thermal Resilience

• The advanced metal housing acts as a highly efficient heat sink, maintaining consistent output power and focal integrity even during continuous, 24/7 operational cycles in non-climate-controlled environments.

Versatile Power & Voltage Options

• With a broad 1mW to 200mW range and standard DC 3V to 5V input, you can perfectly balance energy consumption with projection visibility, integrating seamlessly into standard electronic control boards without complex power conversion units.

Optical Performance & Efficiency

Achieve unparalleled clarity in your visual systems with our advanced diffractive optical elements. By maximizing diffraction efficiency and minimizing unwanted light leakage, this module ensures your structured light is exceptionally bright, defined, and ready for high-precision sensing.

Zero-Order Suppression

• Drastically reduces 0th order transmission through advanced micro-lithography, eliminating the intense central bright spot that can easily blind sensitive camera sensors and ruin data acquisition.

Flat-Top Energy Distribution

• Delivers perfectly uniform energy across the entire geometric projection, ensuring consistent illumination from the dead center to the extreme outer edges of the pattern.

Speckle-Free Projection

• Advanced optical engineering removes inherent laser speckle, providing a smooth, clean pattern that significantly enhances the signal-to-noise ratio for complex machine vision algorithms.

Pattern Customization & Beam Shaping

No two industrial applications are identical, which is why our beam shaping capabilities are entirely adaptable. We transform raw laser energy into the exact geometric configuration your software requires to function flawlessly, perfectly matching your structured light needs.

High-Density Dot Matrices

• Perfect for advanced facial recognition and depth mapping, projecting thousands of distinct, microscopic points for high-resolution 3D rendering and spatial awareness.

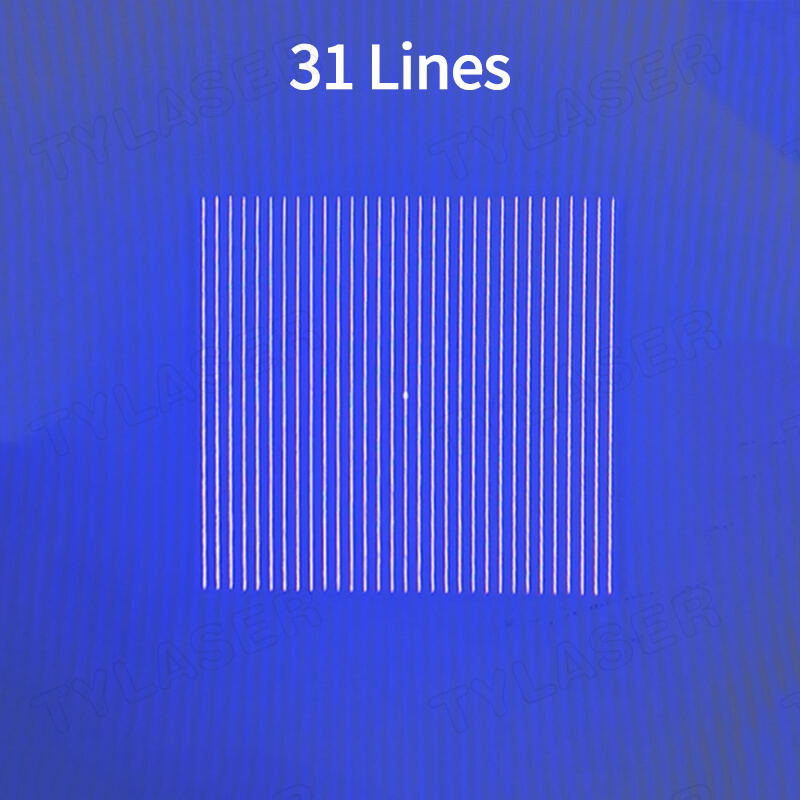

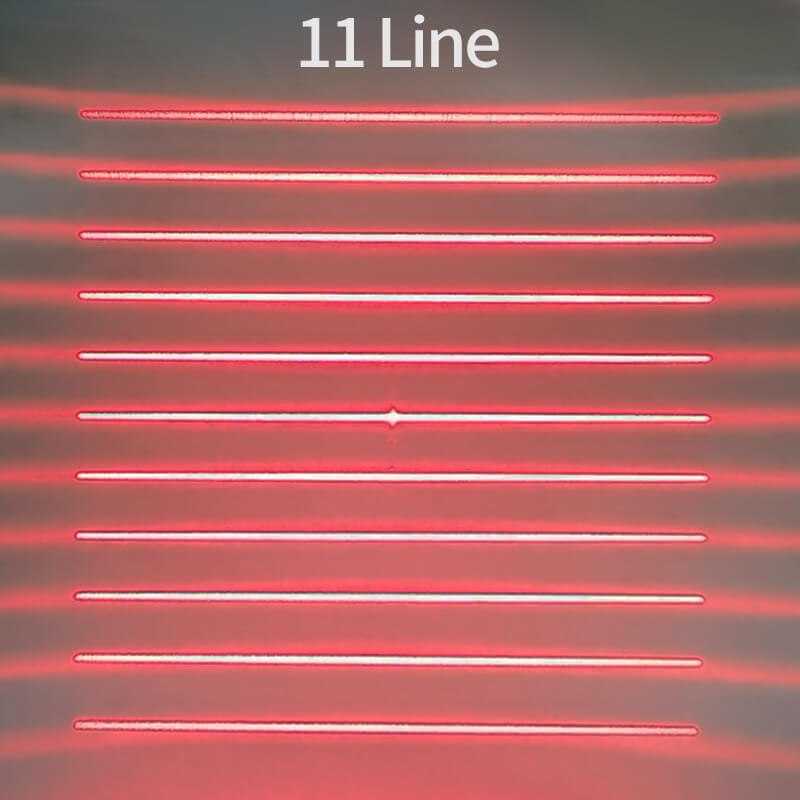

Multi-Line Configurations

• Choose from 3, 5, 7, 11, or up to 81 parallel lines to facilitate rapid volume measurement and topographical scanning on fast-moving conveyor belts.

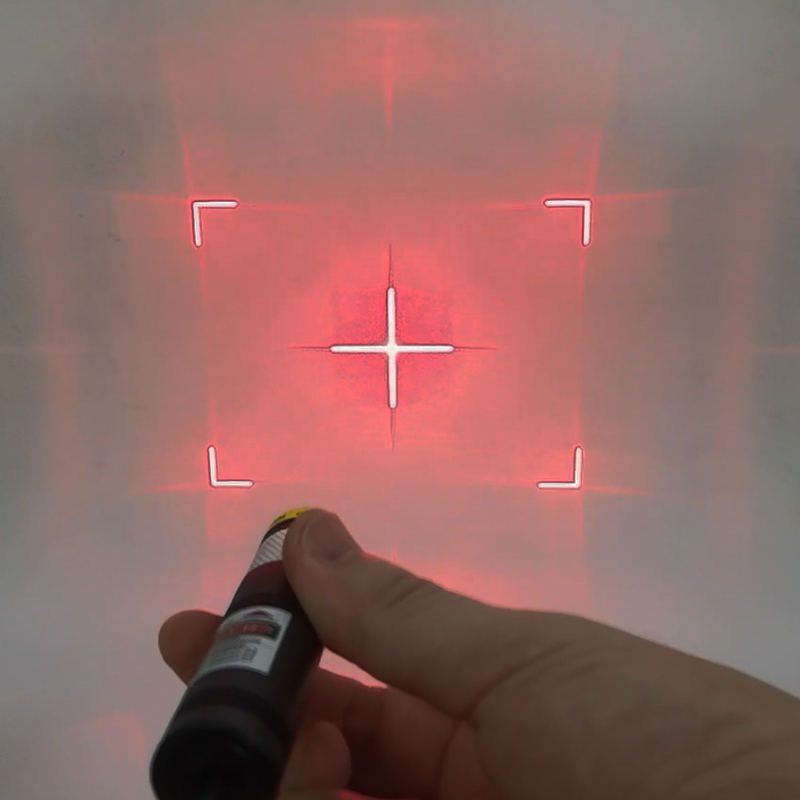

Precision Crosshairs & Circles

• Ideal for industrial alignment and targeting, providing human operators and automated arms with a clear, unwavering visual guide for cutting, drilling, or positioning tasks.

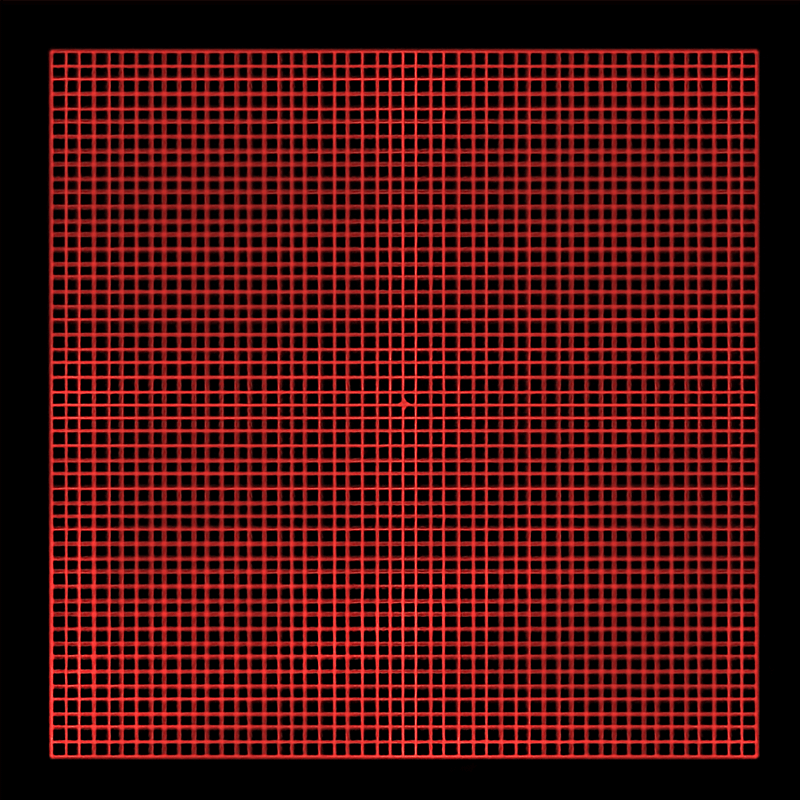

Complex Structured Light Grids

• Capable of generating intricate, custom-designed geometric grids that match the specific calibration parameters of your proprietary machine vision software.

Diffuser & Top-Hat Profiles

• Transforms concentrated beams into broad, evenly lit areas, ideal for wide-area illumination tasks where harsh lighting contrasts would disrupt sensor readings.

Material Quality & Durability

Built to survive and thrive in the most unforgiving industrial environments, the physical construction of this laser module is as impressive as its optical performance. We utilize only top-tier materials to guarantee a long, maintenance-free lifecycle.

Premium Lens Selection

• Choose from fused silica, sapphire, germanium, or ZnSe. These materials ensure optimal transmission rates across specific wavelengths while resisting physical degradation and chemical wear over time.

High Laser Damage Threshold (LIDT)

• The robust inorganic glass components are engineered to withstand intense energy outputs without suffering micro-fractures, internal clouding, or solarization during prolonged use.

Environmental Resistance

• Tightly sealed and constructed to resist severe fluctuations in temperature and humidity, making it the ideal choice for deployment in harsh manufacturing facilities or outdoor sensing equipment.

Applications & Adaptability

The versatility of this optical module makes it a critical upgrade across a wide spectrum of high-tech industries. By providing reliable structured light, it directly enhances the operational capabilities of diverse technological platforms.

3D Scanning & TOF Sensors

• Empowers Time-of-Flight cameras with precise light grids, enabling millimeter-accurate depth measurement, spatial mapping, and autonomous navigation.

Machine Vision & Automation

• Enhances automated quality control systems by highlighting microscopic surface defects and dimensional variations on high-speed production lines.

AR/VR/MR Hardware

• Integrates seamlessly into compact wearable headsets, providing the critical spatial tracking and environment mapping needed for truly immersive augmented reality experiences.

Semiconductor Wafer Inspection

• Delivers the flawless, uniform illumination required to detect microscopic anomalies on delicate silicon wafers during the highly sensitive fabrication process.

Medical Aesthetics & Surgery

• Ensures safe, perfectly distributed energy delivery for advanced laser skin treatments, topographical body scanning, and precision medical targeting devices.

Industrial Alignment

• Provides heavy machinery and CNC equipment with absolute visual guidelines, ensuring cuts, welds, and placements are executed with mathematical perfection.

R&D and One-Stop Customization

Partner with a dedicated manufacturer that deeply understands the intricacies of optical engineering. We do not just supply off-the-shelf parts; we provide comprehensive engineering support to develop a module that fits your exact operational specifications.

End-to-End Engineering Support

• From initial optical simulation and CAD design to rapid prototyping and final mass production, our team handles the entire development lifecycle to ensure your vision becomes reality.

Tailored Wavelengths & Power

• We precisely calibrate the output power (1mW to 200mW) and select the exact wavelength (405nm to 1064nm) to perfectly match your specific sensor's peak sensitivity curve.

Custom Form Factors

• While the standard Φ9mm housing fits most needs, our advanced machining capabilities allow for bespoke dimensions, threading, and mounting brackets to fit your unique chassis.

Rapid Prototyping & Validation

• Accelerate your product development with our fast-turnaround sample creation, allowing your engineers to test, validate, and iterate the optical performance without costly delays.

Safety & Quality Control

Risk mitigation is paramount when integrating laser technology into consumer or industrial products. Our rigorous quality assurance protocols ensure that every unit delivered is safe, compliant, and performs exactly as specified to protect your brand's reputation.

Strict IEC 60825-1 Compliance

• Fully adheres to international laser safety standards, significantly simplifying your end-product certification process and reducing legal liability risks.

Eye-Safe Design Options

• Engineered to provide maximum optical utility while remaining strictly within safe human exposure limits, a crucial requirement for consumer-facing devices like AR headsets and biometric scanners.

Exhaustive Optical Stability Testing

• Every production batch undergoes intense burn-in testing to verify that power output, beam profile, and thermal management remain perfectly consistent over extended operational periods.

Why Choose Us

Sourcing critical optical components requires a partner you can trust for both technical excellence and supply chain reliability. As a premier manufacturer and direct supplier, we bring unmatched value, transparency, and expertise to your procurement process.

Direct Manufacturer Advantage

• Bypass intermediaries to secure highly competitive pricing and gain direct access to our core engineering team for rapid technical troubleshooting and custom design iterations.

Scalable Production Capacity

• Whether you require a small batch for a pilot run or millions of units for global distribution, our agile manufacturing lines scale effortlessly to meet your strict deadlines.

Uncompromising Material Sourcing

• We procure only the highest-grade raw materials—from aerospace-grade housing metals to pure fused silica—ensuring the foundational quality of every single module we produce.

Dedicated Account Management

• Experience seamless communication with our technical sales team, providing your procurement department with transparent lead times, responsive support, and proactive project updates.

Frequently Asked Questions (FAQ)

To assist your engineering and procurement teams, we have compiled detailed answers to the most common technical inquiries regarding our diffractive optical modules. Review these details to understand how our products can seamlessly integrate into your specific applications.

How does the module handle thermal expansion during continuous operation?

• The standard Φ9mm metal housing is precision-machined to act as a highly efficient heat sink. Combined with thermally stable lens materials like fused silica or sapphire, the module maintains strict focal integrity and prevents beam drift, even during 24/7 continuous operation in challenging environments.

Can the zero-order transmission be completely eliminated for sensitive machine vision tasks?

• While the laws of physics dictate that zero-order transmission cannot be absolutely zero, our advanced micro-lithography and etching techniques suppress the 0th order to negligible levels. This ensures it does not interfere with high-sensitivity camera sensors or cause blinding spots in your data capture.

Are custom diffractive patterns available, and what is the typical lead time for a new design?

• Yes, we specialize in custom beam shaping. Once your engineering team provides the required geometric specifications or illumination profiles, our R&D experts can typically produce a simulated optical design within a few days, followed by rapid physical prototyping for your real-world validation.

What safety certifications do these modules meet for consumer-facing devices?

• All our diffractive laser modules are rigorously tested and certified to comply with IEC 60825-1 international laser safety standards. We also offer specific eye-safe power configurations tailored for safe integration into consumer electronics, such as AR/VR headsets and facial recognition systems.

How do you ensure absolute consistency across large production batches?

• We employ Automated Optical Inspection (AOI) and strict Statistical Process Control (SPC) throughout the entire manufacturing process. Every single unit is tested for power output, beam uniformity, and focal precision before shipping, guaranteeing that the ten-thousandth unit performs exactly like the first.
