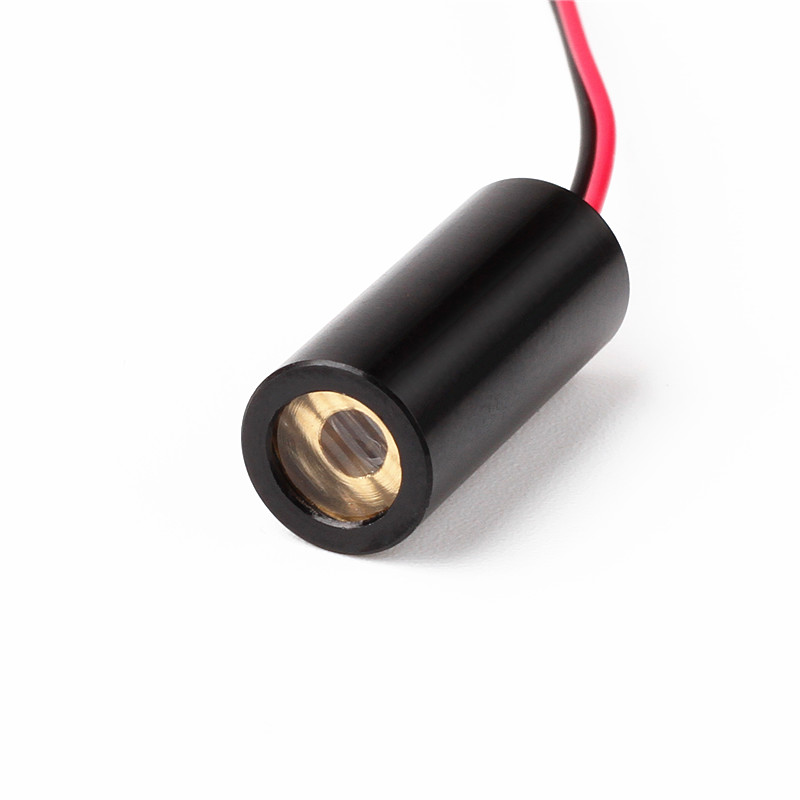

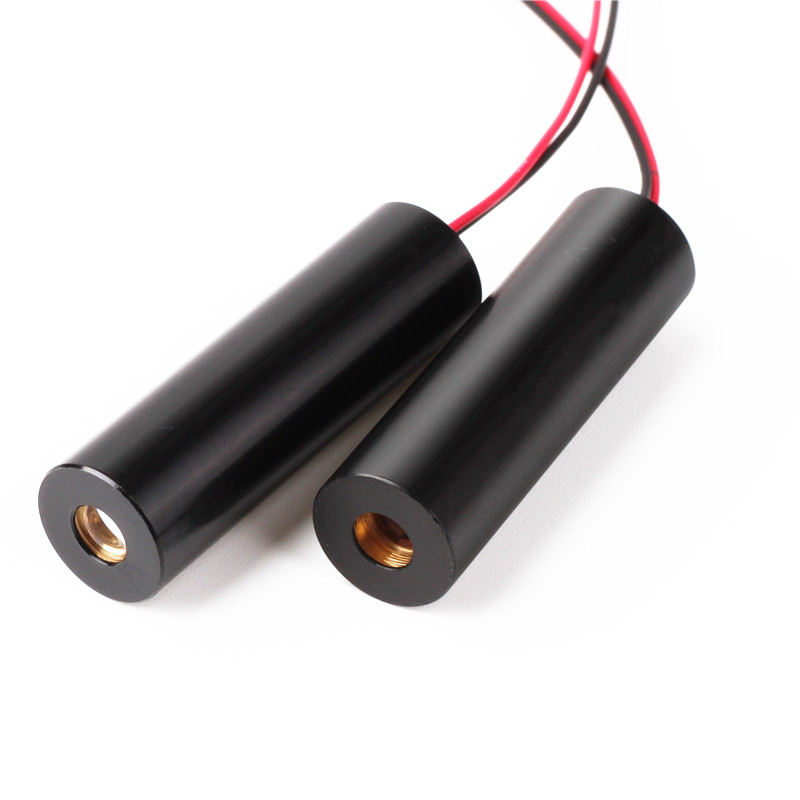

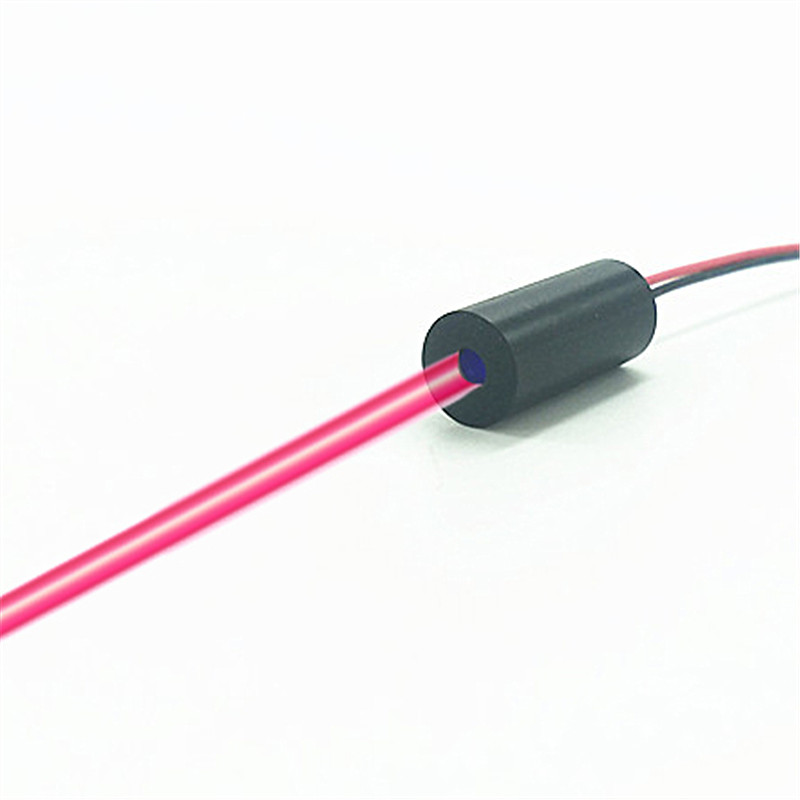

Red Laser Module

Product Overview

As a premier manufacturer and direct supplier of precision optical components, we engineer high-performance red laser modules designed for seamless integration into sophisticated industrial and commercial systems. Sourcing directly from our production facility ensures strict tolerance control, consistent optical quality, and scalable manufacturing for your assembly lines.

• Premium industrial-grade metal housing engineered for superior thermal management.

• Versatile beam patterns including high-definition dot, line, cross, and 360-degree circular.

• Customizable output power ranging from <1mW up to 100mW for diverse applications.

• Direct-from-manufacturer supply ensuring reliable, uninterrupted volume fulfillment.

Product Description

Engineered for uncompromising precision, our red laser module stands as a cornerstone for advanced optical integration. When you hold this module, the cold, smooth touch of its industrial-grade metal housing immediately conveys a sense of rugged durability and meticulous craftsmanship. The precision-machined threads and seamless joints reflect an unyielding commitment to quality, ensuring that the internal optical components remain perfectly aligned even in high-vibration environments. Emitting a piercing, high-definition crimson beam, this device effortlessly cuts through ambient workplace lighting to deliver crisp, sharp projections essential for high-stakes alignment, machine vision, and critical scanning tasks. The integration of high-transmittance glass and premium acrylic lenses guarantees exceptional optical clarity, minimizing diffusion and maximizing energy transfer to the target surface. By incorporating this meticulously calibrated module into your equipment, you eliminate the costly guesswork associated with inferior optics, drastically reducing calibration time and significantly enhancing the operational accuracy of your final products. This is not merely a standard light source; it is a highly refined optical instrument designed to elevate the reliability, functionality, and market value of your entire system architecture.

Product Specifications

To ensure seamless integration into your engineering projects, please review the comprehensive technical parameters of our red laser modules below. These specifications represent our standard manufacturing capabilities, with further customization available upon request.

Key Features & Highlights

Discover the engineering excellence that sets our optical solutions apart. We focus on delivering tangible improvements to your production workflows and equipment capabilities, ensuring every component adds measurable value to your end products.

• Enhanced System Accuracy: The ultra-stable beam projection minimizes deviation over long distances, ensuring your alignment and measurement tools perform flawlessly under the strictest tolerances.

• Accelerated Integration: Designed with standardized dimensions and versatile wiring options, these units drastically cut down on engineering time, allowing your development teams to launch products faster.

• Superior Thermal Stability: The advanced metallic enclosure dissipates heat rapidly, preventing thermal drift and extending the operational lifespan of the diode, which translates to lower maintenance costs for your clients.

• Adaptable Focus Control: Featuring smooth, precise focal adjustments, the module allows operators to fine-tune the beam sharpness for varying working distances without requiring secondary optical attachments.

• Consistent Batch Quality: Manufactured under rigorous quality control protocols, every unit in your volume order performs identically, eliminating the need for individual calibration on your assembly line.

Optical Performance & Beam Patterns

Achieving flawless visual targeting and scanning requires uncompromising optical clarity. Our modules are engineered to deliver exceptionally sharp and defined projections tailored to highly specialized operational requirements in machine vision and industrial alignment.

• Versatile Projection Options: Select from high-definition dot, line, cross, or complete 360-degree circular patterns to perfectly match your specific spatial alignment or targeting needs.

• Precision Fan Angles: Available in a wide spectrum of fan angles—from a tightly focused 15° to an expansive 110°—allowing precise control over the line length and coverage area.

• Premium Lens Materials: Equipped with top-tier glass or high-transmittance acrylic lenses, ensuring minimal photon loss and maintaining a crisp, non-diffused edge even at extended operational distances.

• Focal Adaptability: Choose between adjustable focus mechanisms for dynamic working environments or fixed focus designs for permanent, tamper-proof installations in automated machinery.

Power Range & Safety Compliance

Balancing operational efficacy with strict safety standards is critical for global equipment distribution. We provide a comprehensive spectrum of power outputs engineered to meet both performance demands and international regulatory requirements.

• Broad Power Spectrum: Ranging from a subtle <1mW for darkroom scientific research to a robust 100mW for high-visibility industrial targeting in brightly lit environments.

• Strict Regulatory Adherence: Meticulously calibrated to comply with Class II and Class IIIa (3R) laser safety classifications, facilitating smoother certification processes for your final equipment.

• Safe Medical & Civilian Use: The controlled emission profiles ensure that modules integrated into medical devices, consumer electronics, and defense equipment operate safely within established thresholds.

• Consistent Output Stability: Advanced internal circuitry prevents power spikes, ensuring the beam intensity remains constant throughout prolonged operational cycles, safeguarding both the equipment and the end-user.

Electrical Integration & Modulation

Modern automated systems demand components that communicate seamlessly and operate efficiently. Our modules feature sophisticated internal electronics designed for effortless pairing with diverse control architectures and microcontrollers.

• Wide Voltage Compatibility: Operating efficiently between 2.8V and 6.0V DC (with standard 3VDC and 5VDC options), these units easily integrate into existing power grids without requiring bulky step-down converters.

• Ultra-Low Power Consumption: Drawing a mere ≤ 25mA (for 5mW configurations), the energy-efficient design is ideal for battery-operated handheld devices and remote wireless sensor networks.

• Advanced Driver Circuitry: Built-in Automatic Power Control (APC) or Automatic Current Control (ACC) guarantees unwavering stability, actively protecting the sensitive diode from destructive voltage fluctuations.

• Dynamic Modulation Capabilities: Fully supporting Continuous Wave (CW), high-speed TTL, and Analog modulation, enabling flawless synchronization with microcontrollers (like Arduino/Raspberry Pi) and complex OEM automation systems.

Structural Design & Durability

Industrial environments are unforgiving, requiring components that can withstand constant abuse while maintaining microscopic precision. The physical architecture of our modules is engineered for ultimate resilience and spatial efficiency.

• Ultra-Compact Footprint: With micro-diameters starting at just Φ3.3mm, these units slide effortlessly into the tightest mechanical enclosures, freeing up valuable internal real estate for other critical components.

• Ruggedized Metal Housing: The heavy-duty metallic shell provides exceptional resistance to mechanical shock, vibration, and accidental impacts common in heavy machinery and robotics.

• Broad Temperature Tolerance: Engineered to perform flawlessly in fluctuating climates, maintaining optical integrity from a freezing -10°C up to a sweltering +40°C.

• Environmental Protection: Select premium models feature enhanced sealing techniques, offering robust waterproof and dustproof capabilities to survive in the harshest manufacturing and outdoor environments.

Accessories & Mounting Support

Streamlining your assembly process and reducing deployment time is our priority. We provide a comprehensive ecosystem of compatible hardware, eliminating the frustrating search for third-party mounting and power solutions.

• Omnidirectional Mounting Brackets: Precision-engineered, multi-axis adjustable brackets available for various tube diameters allow for rapid, secure, and infinitely adjustable positioning on your machinery.

• Dedicated Thermal Management: Custom-milled aluminum heatsinks are available to dramatically enhance heat dissipation for high-power modules, ensuring continuous 24/7 operation without thermal degradation.

• Plug-and-Play Power Solutions: Matched power adapters ensure clean, stable voltage delivery right out of the box, preventing diode damage from incompatible or noisy power sources.

• Certified Safety Gear: We supply industry-standard laser safety goggles meticulously calibrated to the specific 633nm-705nm wavelength, ensuring immediate operational safety for your assembly technicians.

OEM Customization Services

Off-the-shelf solutions often fall short of highly specialized engineering requirements. Our dedicated R&D facility is equipped to modify every aspect of the module to align perfectly with your proprietary designs and niche market demands.

• Wavelength Fine-Tuning: Beyond the standard 635nm, 650nm, and 660nm, we can isolate specific wavelengths within the 633nm-705nm spectrum to match the exact sensitivity of your optical sensors.

• Bespoke Dimensional Engineering: Whether you require non-standard housing lengths, unique threading, or specialized form factors, our CNC machining centers can produce housings tailored to your exact blueprints.

• Custom Wiring and Terminations: Specify exact lead wire lengths, shielding materials, and proprietary connector types to ensure the modules plug directly into your existing wiring harnesses without modification.

• Application-Specific Calibration: From LiDAR systems and sophisticated medical instruments to advanced barcode scanners, we meticulously tune the power, focus, and modulation to conquer your unique challenges.

Why Choose Us

Partnering with a reliable manufacturer is the foundation of a successful product line. We bring decades of optical engineering expertise and robust manufacturing capabilities to your supply chain, ensuring your production never stops and your quality never wavers.

• Uncompromising Quality Assurance: Every single unit undergoes rigorous optical and electrical testing before leaving our facility, guaranteeing a zero-defect rate for your incoming inventory.

• Scalable Production Capacity: Whether you need a small batch for prototyping or tens of thousands of units for global distribution, our agile manufacturing lines scale instantly to meet your volume demands.

• Direct Manufacturer Pricing: By eliminating middlemen, we provide highly competitive pricing structures that significantly improve your profit margins without sacrificing component quality.

• Dedicated Engineering Support: Our team of seasoned optical engineers acts as an extension of your own R&D department, offering technical guidance, troubleshooting, and design optimization from concept to mass production.

• Global Logistics Expertise: We utilize robust, shock-proof packaging and partner with top-tier logistics networks to ensure your sensitive optical components arrive on time and in pristine condition, anywhere in the world.

Frequently Asked Questions (FAQ)

How does the Automatic Power Control (APC) circuit enhance the module's lifespan?

The built-in APC circuit continuously monitors the optical output and dynamically adjusts the drive current to compensate for temperature fluctuations and natural diode aging. This intelligent regulation prevents thermal runaway and optical degradation, significantly extending the operational lifespan of the unit and ensuring consistent, reliable performance in your equipment over years of use.

Can the laser module be integrated directly with a 5V microcontroller like an Arduino or Raspberry Pi?

Absolutely. Modules configured for 5VDC operation with TTL modulation can be wired directly to standard microcontroller logic pins. The TTL input allows for rapid switching and precise control of the laser emission without requiring external relay circuits or complex driver boards, streamlining your electronic design and reducing overall component costs.

What factors should be considered when choosing between a glass and an acrylic lens?

Glass lenses offer superior thermal stability and higher optical transmittance, making them the ideal choice for high-power outputs and harsh industrial environments where precision is paramount. High-quality acrylic lenses, on the other hand, provide a lightweight, highly cost-effective alternative with excellent clarity, perfectly suited for standard indoor alignment, consumer electronics, and basic scanning applications.

How do I determine the correct fan angle for a line-generating laser in my machine vision setup?

The optimal fan angle depends entirely on the required line length and the mounting distance from the target surface. A wider angle (such as 90° or 110°) generates a longer line at a shorter distance but naturally reduces the overall beam intensity. Conversely, a narrower angle (like 15° or 20°) provides a shorter, highly concentrated line that is ideal for long-range projection or operating in brightly lit environments where visibility is a challenge.

Are there specific thermal management requirements for the 50mW and 100mW high-power variants?

Yes. While our industrial-grade metal housing provides excellent baseline heat dissipation, high-power variants operating continuously (CW mode) generate significant heat that requires active management. We highly recommend utilizing our custom-milled aluminum heatsinks and ensuring adequate airflow within your equipment's enclosure to maintain the diode within the safe -10°C to +40°C operating range, thereby preventing premature diode failure and maintaining beam stability.
