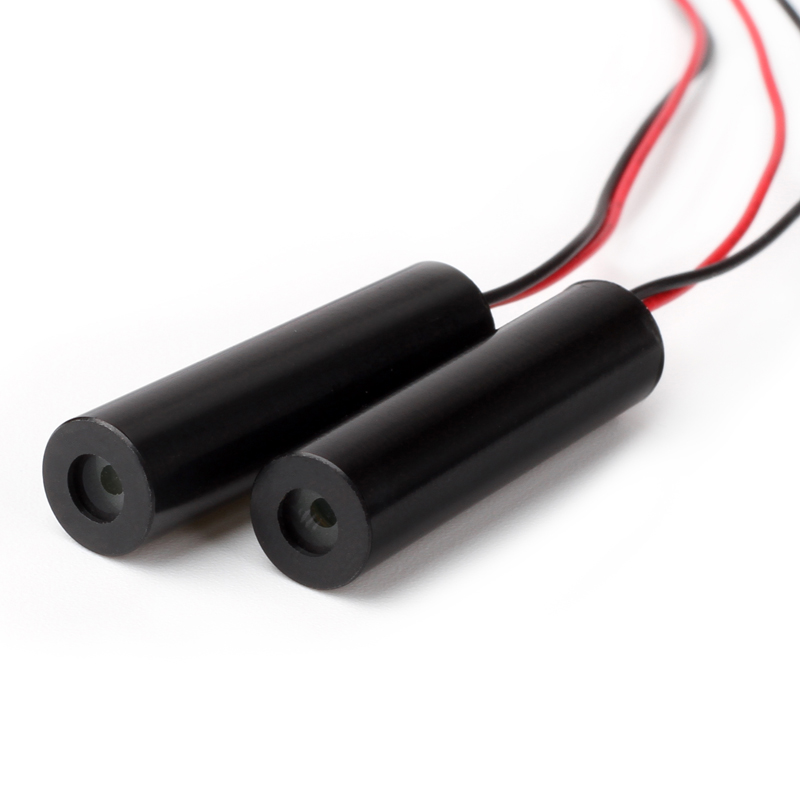

Green Laser Module

Product Overview

As a premier manufacturer and supplier of precision optical components, we engineered this high-performance Green Laser Module to meet rigorous industrial demands. Designed for bulk procurement and seamless integration, it delivers unparalleled visibility and stability for alignment, scanning, and measurement systems.

• Available Wavelengths: 515nm, 520nm, and 532nm

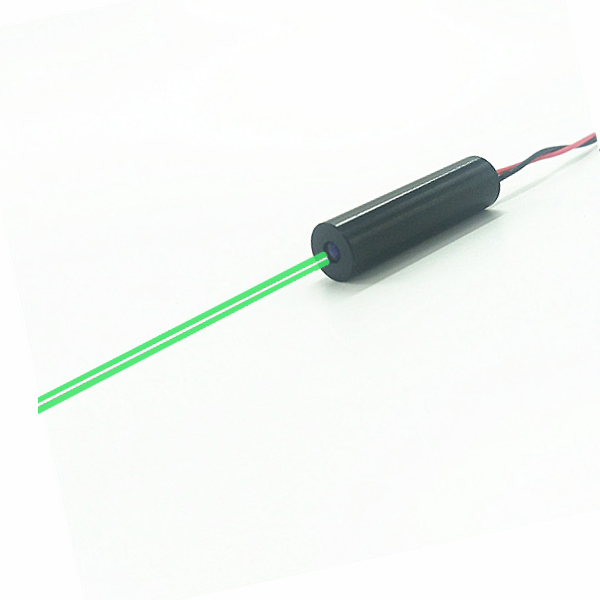

• Versatile Beam Profiles: Dot, Line, and Crosshair

• Advanced Circuitry: Built-in APC and TTL control

• Scalable Solutions: Full OEM customization supported

Product Description

Step into a new realm of optical precision with our meticulously crafted Green Laser Module. When you hold this module, the cool, solid touch of the precision-machined anodized aluminum and copper housing immediately conveys industrial-grade durability. Designed to operate flawlessly in demanding environments, this device emits a piercingly crisp, vivid green beam that cuts through ambient light with absolute authority. Unlike standard red alternatives, the human eye perceives this specific green wavelength with remarkable clarity, eliminating the frustration of losing your alignment mark in brightly lit outdoor conditions or complex indoor manufacturing facilities.

The engineering inside is just as refined as its sleek, metallic exterior. Emitting a silent, steady beam without the erratic flickering associated with inferior diodes, it ensures your measuring, cutting, or scanning equipment operates with pinpoint accuracy. By integrating this module into your production lines or specialized devices, you significantly reduce calibration times and minimize operational errors. The seamless fusion of advanced optics and robust thermal management means your systems will run cooler, longer, and with unwavering reliability, ultimately driving down maintenance costs and elevating your overall operational efficiency.

Product Specifications

When engineering complex automated systems or designing precision instruments, having exact and reliable technical data is paramount. To ensure seamless integration into your existing infrastructure, we provide comprehensive technical specifications for our green light emitting solutions below. Every parameter has been carefully calibrated to meet the stringent requirements of high-end equipment manufacturers and system integrators. From voltage flexibility to diverse beam profiles, the data outlines the exact capabilities you can expect. We also offer extensive customization options to tailor these specifications to your unique project demands, ensuring optimal compatibility and performance across all your critical applications.

Key Features & Highlights

Elevate your equipment's performance with features engineered specifically for demanding commercial environments. Our green laser solutions are designed not just to emit light, but to solve complex alignment and positioning challenges, ensuring your operations run smoothly and efficiently without unnecessary interruptions.

• Exceptional Beam Clarity: Emits a brilliantly sharp green profile that drastically reduces eye strain for operators, leading to faster, more accurate manual alignments and reduced fatigue during long shifts.

• Rugged Environmental Resistance: Encased in premium metals, the module withstands heavy vibrations, dust, and mechanical shocks, preventing costly downtime in heavy-duty settings like lumber mills or stone processing plants.

• Plug-and-Play Integration: Standardized sizing and flexible voltage inputs mean your engineering team spends less time on complex wiring and more time optimizing core system functions, accelerating your time-to-market.

• Thermal Supremacy: Advanced heat dissipation architecture prevents thermal degradation, meaning the beam remains perfectly stable and focused even during continuous, round-the-clock operation.

• Tailored Form Factors: Whether you need an ultra-compact footprint for a handheld 3D scanner or a robust housing for industrial CNC machinery, the varied dimensions adapt perfectly to your spatial constraints.

Comprehensive Performance Dimensions

Understanding the multifaceted capabilities of our optical solutions empowers you to make the best procurement decisions for your manufacturing or integration needs. We evaluate our modules across six critical performance dimensions to guarantee they exceed industry expectations and deliver tangible value to your operations.

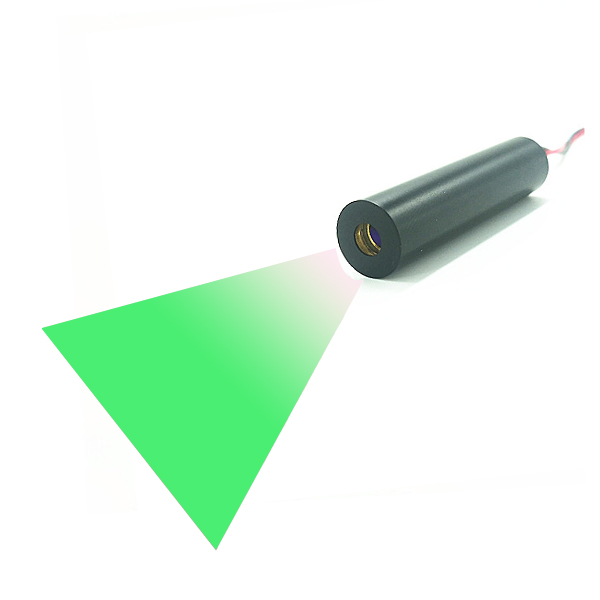

• Optical Performance & High Visibility: Operating between 515nm and 532nm, the visual brightness is up to ten times greater than traditional red or blue alternatives. Whether you select a focused dot, a precise 60-degree fan line, or a sharp crosshair, the superior beam quality ensures exact alignment even in long-distance or high-glare outdoor environments.

• Power Output & Core Stability: Equipped with sophisticated Automatic Power Control (APC) circuits and optional TEC cooling, the continuous wave (CW) output remains exceptionally stable. This low-noise, temperature-resistant architecture guarantees reliable, uninterrupted performance during complex industrial processes.

• Structure & Thermal Management: The compact architecture, available in ultra-small Φ8mm or Φ12mm profiles, utilizes high-grade anodized aluminum and copper. This meticulous craftsmanship provides outstanding physical protection and thermal dissipation, effortlessly extending the service life beyond 5,000 hours.

• Electrical Compatibility & Modulation: Featuring wide voltage inputs from 3V to 24V and integrated TTL modulation for high-frequency control, these units are incredibly versatile. The standardized dimensions and intuitive wiring allow for rapid, frictionless installation into OEM sensors and automated machinery.

• Versatile Industry Applications: These modules are perfectly adapted for rigorous scenarios including machine vision, heavy machinery alignment, 3D spatial scanning, and precision medical instrumentation. They provide scalable, high-accuracy solutions tailored to your specific sector.

• Quality Control & Safety Compliance: Every single unit undergoes rigorous power meter testing and calibration before dispatch to ensure absolute output accuracy, completely eliminating false specifications. Fully compliant with FDA safety standards (such as Class IIIa) and international certifications, these modules significantly reduce your compliance risks and eliminate post-purchase maintenance headaches.

Why Choose Us

Selecting the right manufacturing partner for your optical components is critical to the success and longevity of your final product. As a dedicated supplier, we focus on delivering not just a component, but a comprehensive solution that enhances your competitive edge. We understand the nuances of large-scale procurement and the absolute necessity of unfailing reliability.

• Direct Manufacturer Advantage: By sourcing directly from our state-of-the-art production facility, you bypass intermediaries, ensuring highly competitive pricing and consistent supply chains for your large-scale orders.

• Uncompromising Quality Assurance: We implement a strict zero-tolerance policy for power exaggeration. What you see on the specification sheet is exactly what your instruments will deliver, safeguarding your brand's reputation in the market.

• Rapid Customization Turnaround: Our engineering team works closely with your designers to modify wavelengths, dimensions, and power outputs, dramatically accelerating your product development cycle.

• Dedicated Technical Support: From initial prototyping to full-scale rollout, our experienced technicians provide continuous guidance, ensuring seamless integration and optimal performance of every module you purchase.

Frequently Asked Questions (FAQ)

Navigating the technical specifications of advanced optical components can be complex. To assist your engineering and purchasing teams in making informed decisions, we have compiled detailed, professional answers to the most common inquiries regarding our green light emitting modules.

• Q: How does the APC circuit improve the lifespan of the module?
  A: The Automatic Power Control (APC) circuit continuously monitors and adjusts the operating current to maintain a constant optical output. This prevents power spikes and thermal runaway, significantly reducing stress on the internal diode and ensuring the module easily exceeds its 5,000-hour operational lifespan.

• Q: Can these modules be integrated into high-vibration equipment like stone-cutting saws?
  A: Absolutely. The internal optics are securely bonded, and the robust anodized aluminum or copper housing provides exceptional mechanical stability. This rugged construction ensures the beam shape and alignment remain perfectly intact, even under continuous, heavy vibrations typical in heavy industrial machinery.

• Q: What is the advantage of TTL modulation in your laser systems?
  A: TTL (Transistor-Transistor Logic) modulation allows the laser to be turned on and off at extremely high frequencies via an external digital signal. This is essential for applications requiring precise timing, such as machine vision synchronization, high-speed 3D scanning, and complex optical data transmission.

• Q: Do you offer thermal management solutions for high-power customized variants?
  A: Yes. For customized modules requiring output powers up to 3.5W+, we integrate advanced TEC (Thermoelectric Cooling) systems. This active cooling technology maintains the diode at an optimal temperature, preventing wavelength drift and power degradation during continuous heavy-duty operation.

• Q: How do we determine the correct beam shape (dot, line, or crosshair) for our specific application?
  A: The choice depends entirely on your operational goal. Dots are ideal for long-distance targeting and point-to-point measurements. Lines are highly recommended for surface profiling, 3D scanning, and cutting alignment. Crosshairs provide excellent reference points for precise X-Y axis positioning in medical or CNC machinery. Our technical team is always available to help you select the perfect profile.
